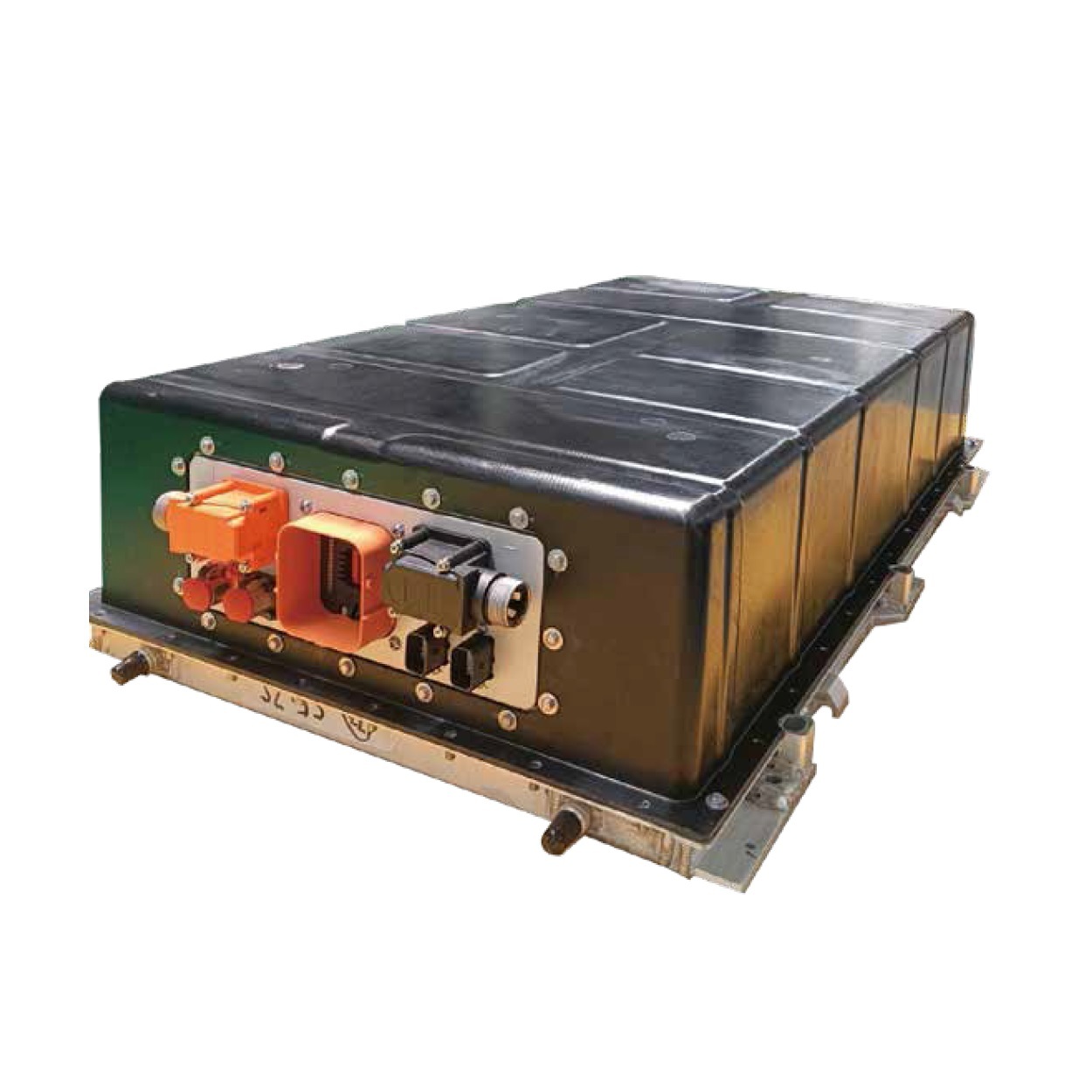

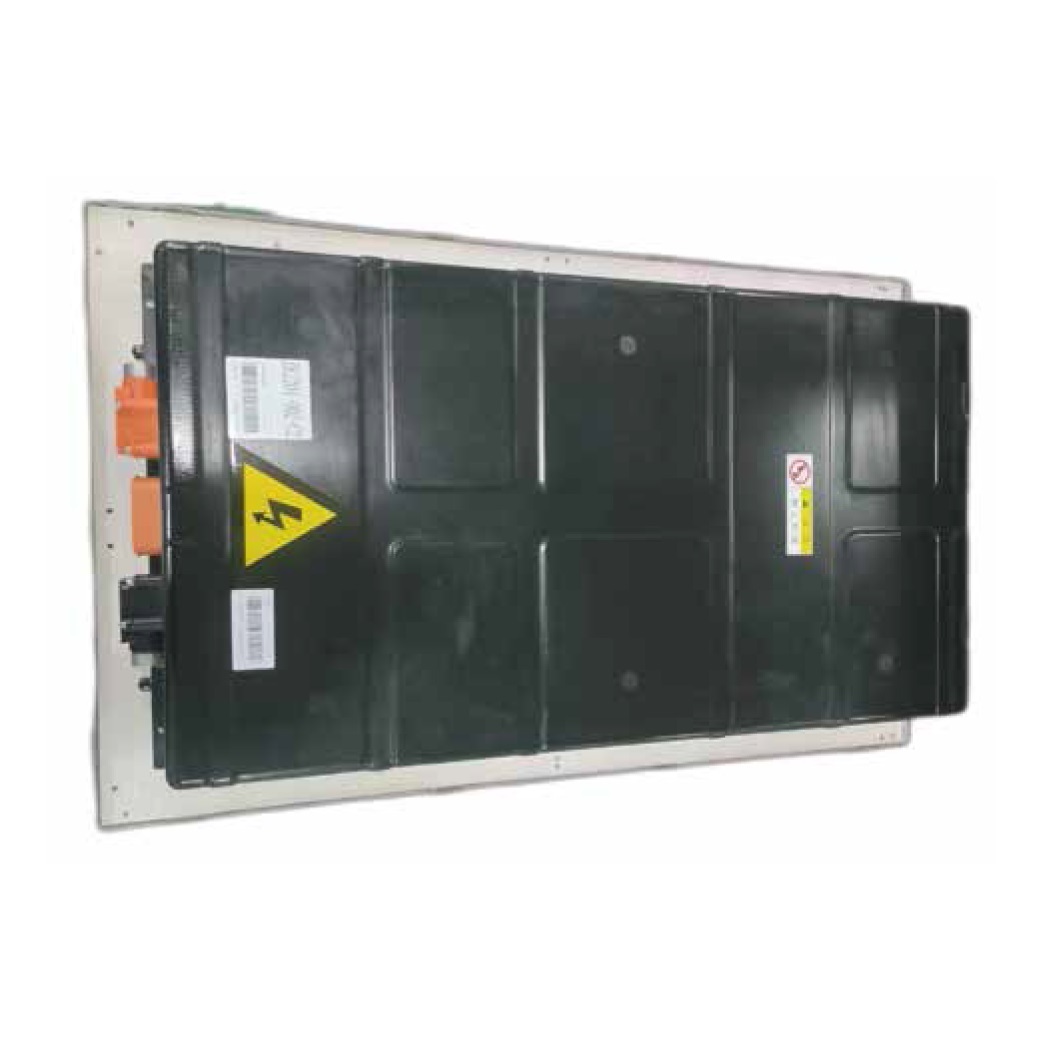

Standard Box Model-G 96V/124.8V 230AH/250AH 25kWh/28kWh LiFePO4 Lithium Battery for Electric Construction Machinery Heavy Duty Truck Pure Electric Terminal Tractor
Advantage:
More than 20 years experience in heavy duty equipments and vehicles battery designingand production
Both Voltage and Capacity can be customized according to your equipment / vehicle;
Will design structure and fixtures according to your real size;
Liquid cooling design, better cooling and longer cycle life;
Heating wire will support battery application under low temperature.
Technical Data:
| Liquid Cooling System | ||
| No. | Parameter | Data |
| 1 | Heat Dissipation Performance | Temperature rise <8 ℃ @1CHG, 25℃ |
| 2 | Heating Rate | Heating rate ≥0.7 ℃/min @inlet temperature ≤50℃ |
| 3 | Heating Efficiency | ≥60% @ inlet temperature 15-35℃ |
| 4 | Cooling Efficiency | ≥70% @ 1C charging |
| No. | Parameter | Data |
| 1 | Model | Model-G |
| 2 | Single Box Voltage | 96V / 124.8V |
| 3 | Single Box Power | 25kWh / 28kWh |
| 4 | System Power | 282 - 565kWh |
| 5 | Specific Energy | ≥150Wh/kg |
| 6 | IP Grade | IP68 |
| 7 | Box Size | 950x630x240mm |
| 8 | Thermal Management | Liquid cooling plate integrated base |
| 9 | Sampling Method | CCS/FPC |
Main Application: Pure Electric Terminal Tractor, etc.
Remark:
1. Battery Cells and discharge current can be customized
2. Battery dimension can be customized
3. Lithium battery is widely used as replacement battery for lead acid battery
Other function optional:
1. Bluetooth function
2. Communication function: RS485, RS232, Canbus (Optional)
3. Self heat function
