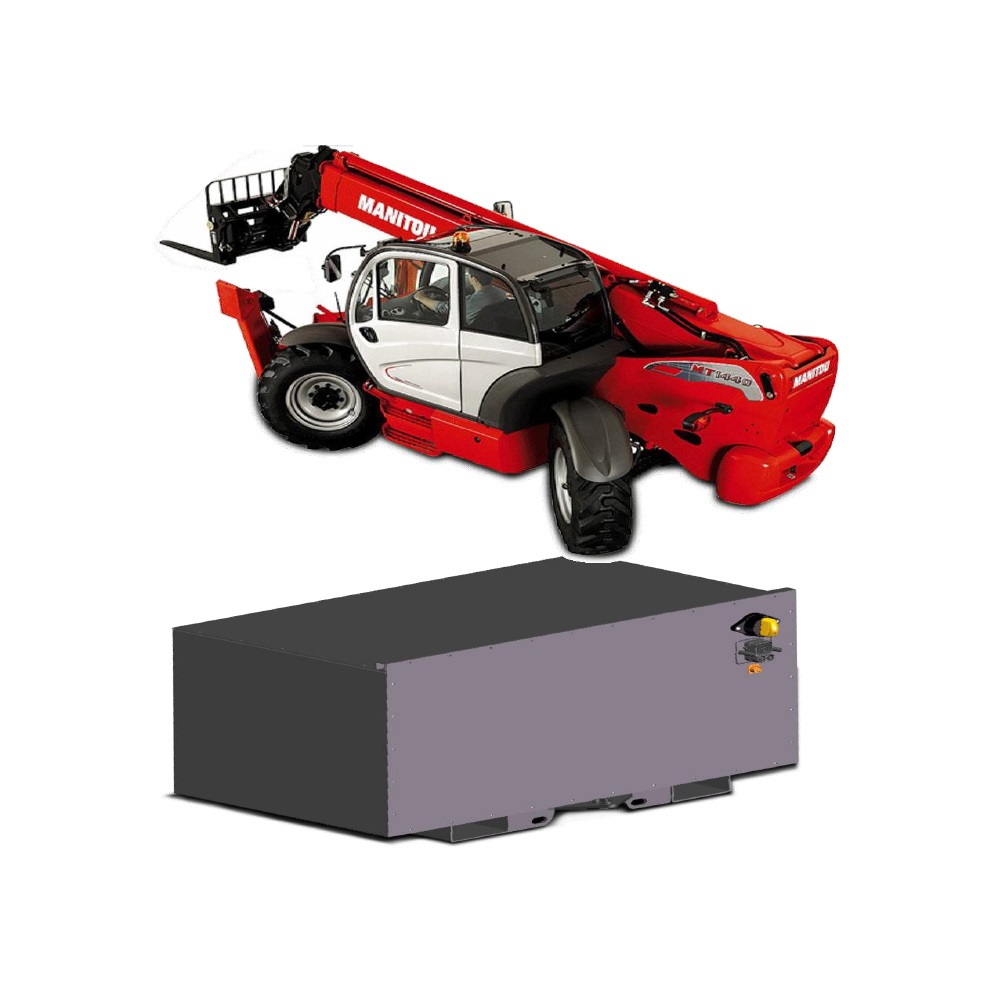

About our Lithium Battery for Heavy Duty Construction Machinery and Vehicle
Advantage:
More than 20 years experience in heavy duty equipments and vehicles battery designingand production;
Both Voltage and Capacity can be customized according to your equipment / vehicle;
Will design structure and fixtures according to your real size;
Liquid cooling design, better cooling and longer cycle life;
Heating wire will support battery application under low temperature.
Technical Data:
| No. | Parameter | Data |
| 1 | Model | M01 |
| 2 | Rated Capacity | 105Ah |
| 3 | Rated Power | 65.52kWh |
| 4 | Rated Voltage | 624V |
| 5 | Working Voltage Range | 487.5-711.7V |
| 6 | Working Temperature Range | Charge: 0-55℃ |
| Discharge: -20-55℃ | ||
| 7 | Max continuous discharge current | 105A |
| 8 | Peak discharge current | 180A@10S |
| 9 | Max continuous charge current | 105A |
| 10 | Thermal management power | 3000W |
| 11 | Thermal management method | PTC Heating |
| 12 | Thermal management efficiency | Rate of heating 15℃/h |
| 13 | IP Grade | IP67 |
| 14 | Battery Pack Size | 1114x628x673.4mm |
Main Application: Electric Rough-Terrain Fork Lift, etc.
Remark:
1. Battery Cells and discharge current can be customized
2. Battery dimension can be customized
3. Lithium battery is widely used as replacement battery for lead acid battery
Other function optional:
1. Bluetooth function
2. Communication function: RS485, RS232, Canbus (Optional)
3. Self heat function
If you need other voltage and capacity battery, please feel free to contact us
Production details:
(1). All LiFePO4 Battery Cells are from CATL or EVE, best quality and super long life
(2). Aluminium Base holding plate design according to battery size, strong structure with liquid cooling design, best cooling and ensure product stable and long life.
(3). Filling thermal conductive silica gel, ensure best cooling and ensure product stable and long life.
(4). All with Aluminium fixtures, strong and good heat sinking performance. Fixed all around by plastic steel strips, strong and stable structure.
(5). Heating wires attached on cells will ensure battery can be used in low temperature places.
Testing Details:
