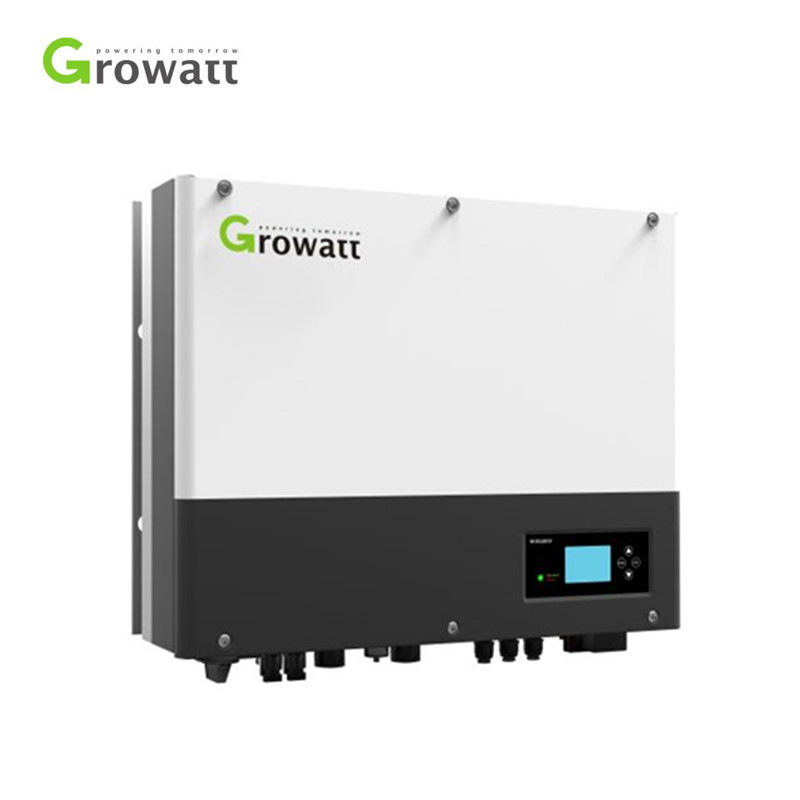

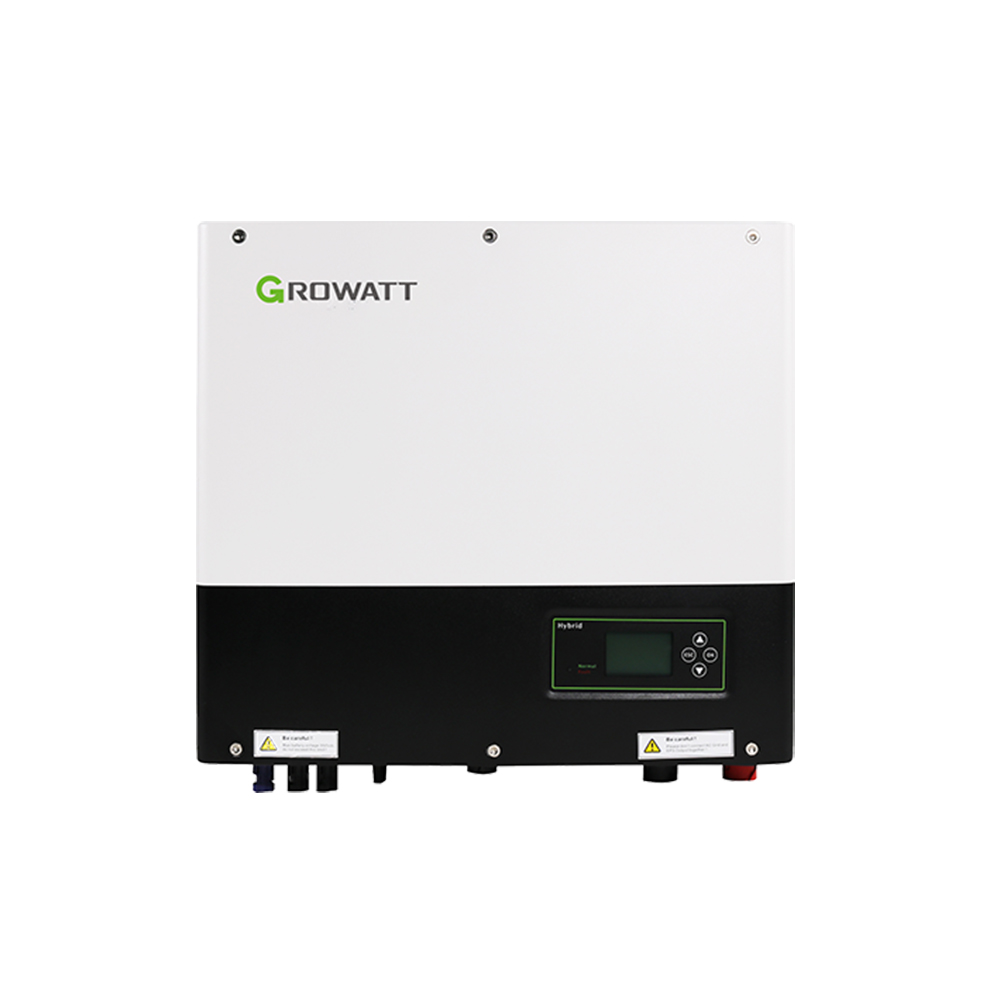

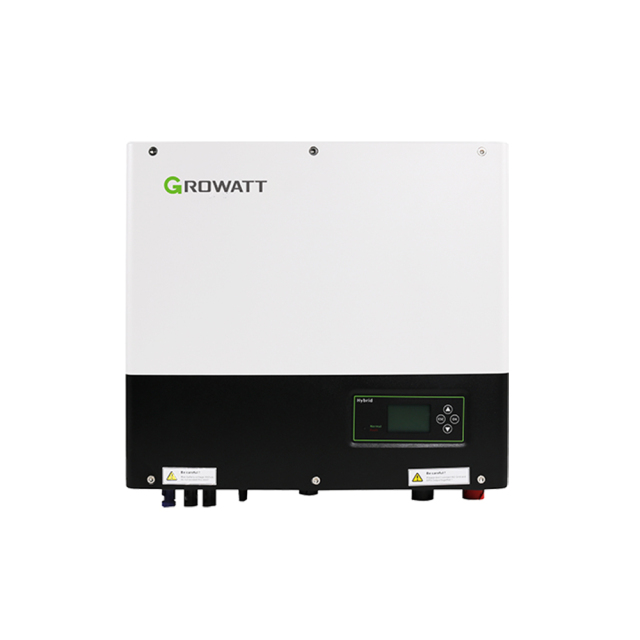

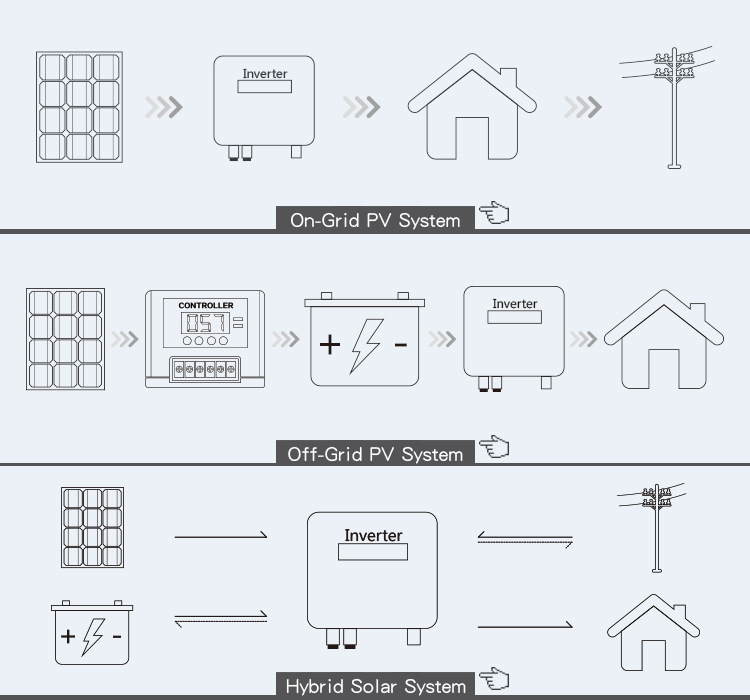

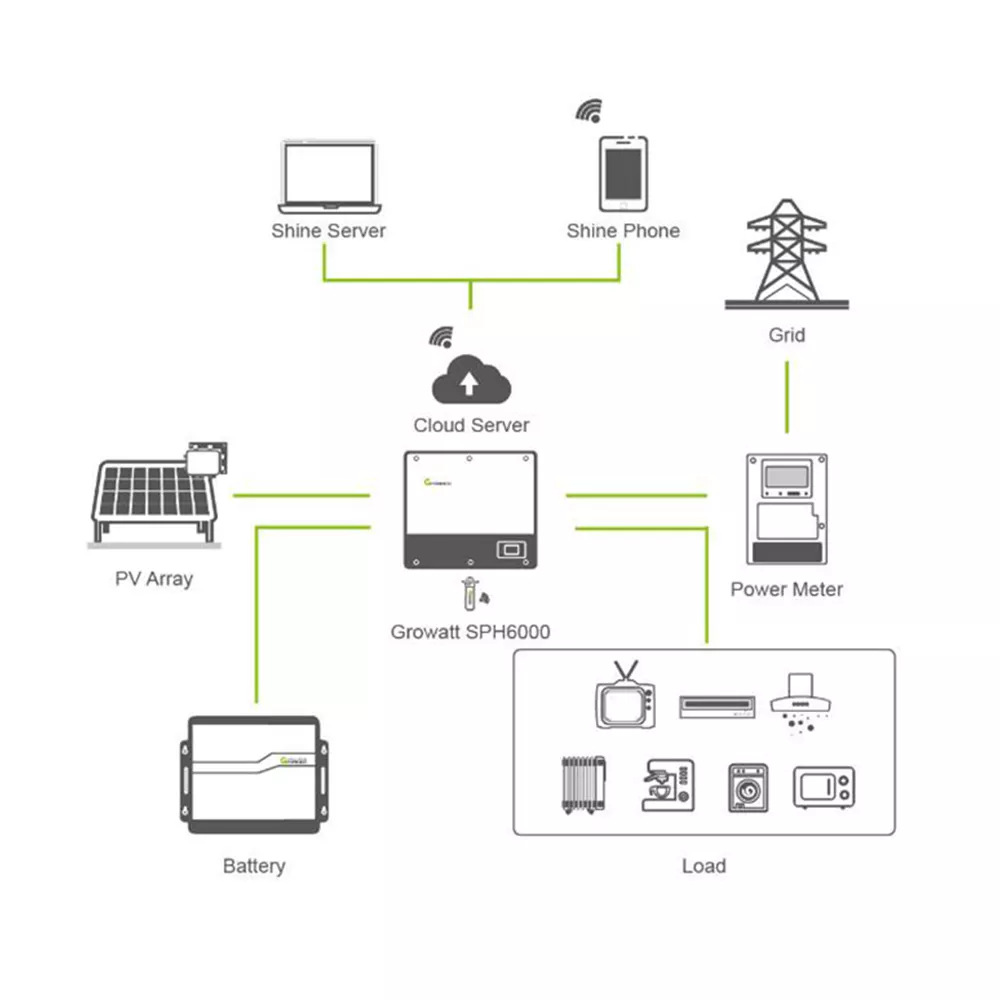

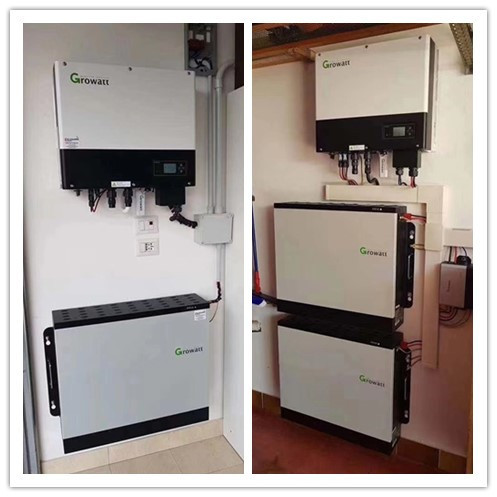

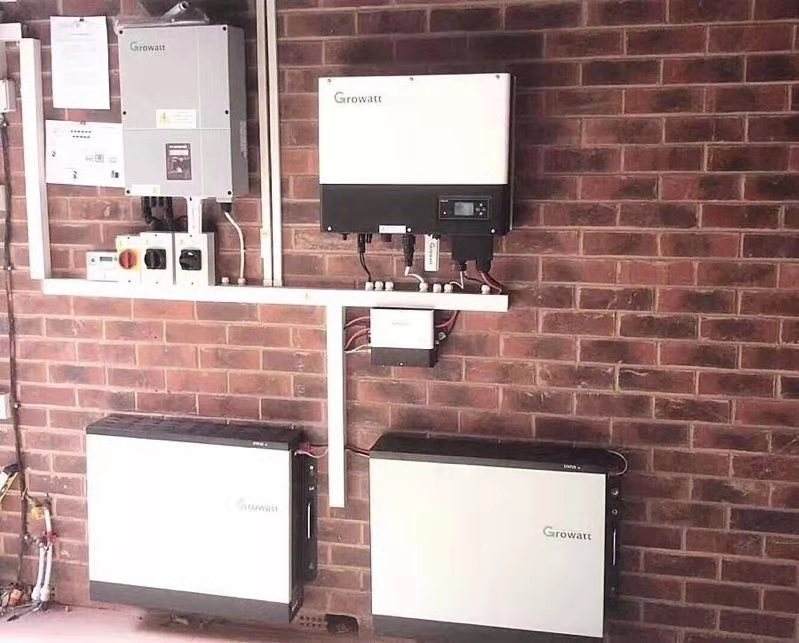

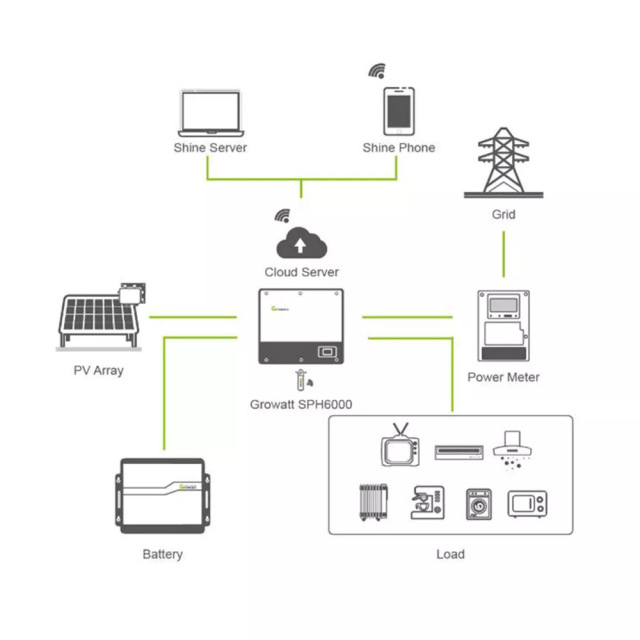

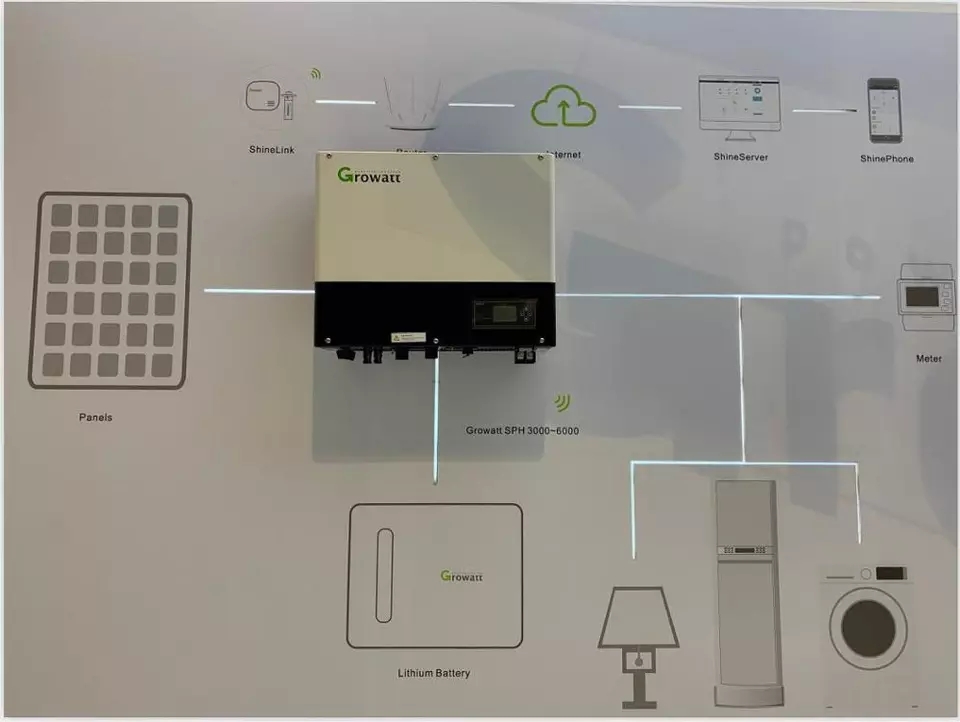

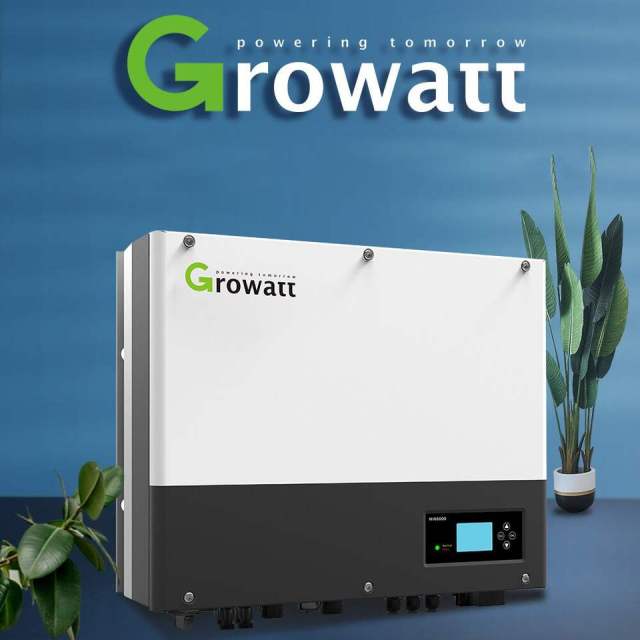

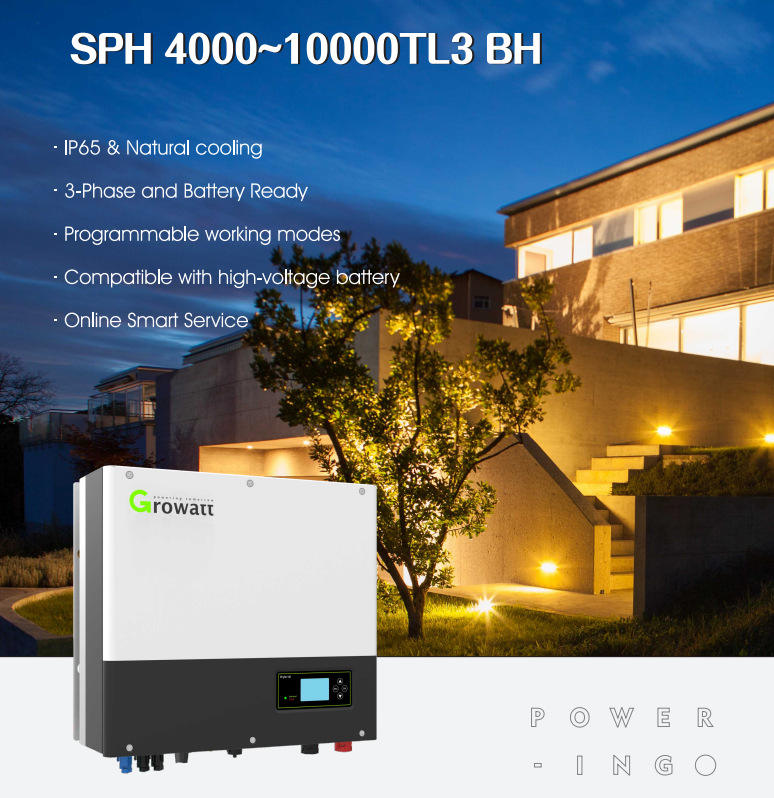

| Datasheet | SPH 4000TL3 BH | SPH 5000TL3 BH | SPH 6000TL3 BH | SPH 7000TL3 BH | SPH 8000TL3 BH | SPH 10000TL3 BH |
| Input data(PV) | ||||||
| Max. recommended PV power (for module STC) | 5200W | 6500W | 7800W | 9100W | 10400W | 13000W |
| Max. DC voltage | 1000 | |||||
| Start voltage | 160V | |||||
| MPP voltage range | 160V-1000V / 600V | |||||
| No. of MPP trackers | 2 | |||||
| No. of PV strings per MPP tracker | 1 | |||||
| Max. input current per MPP tracker | 12A | |||||
| Max. short-circuit current per MPP tracker | 15A | |||||
| Output data(AC) | ||||||
| AC nominal power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA |
| Nominal AC voltage (range*) | 230V/400V (310~476V) | |||||
| AC grid frequency (range*) | 50Hz/60Hz (45Hz-55Hz/55Hz-65Hz) | |||||
| Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A |
| Adjustable power factor | 0.8leading…0.8lagging | |||||
| THDi | <3% | |||||
| AC grid connection type | 3W+N+PE | |||||
| Battery data (DC) | ||||||
| Battery voltage range | 100~550V | |||||
| Max charging and discharging current | 25A | |||||
| Continuous charging and discharging power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Type of battery | Lithium battery | |||||
| Backup power(AC) | ||||||
| Max. AC output power | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Max. AC apparent power | 4000VA | 5000VA | 6000VA | 7000VA | 8000VA | 10000VA |
| Max. output current | 6.1A | 7.6A | 9.1A | 10.6A | 12.1A | 15.2A |
| Nominal AC output voltage | 230V/400V | |||||
| Nominal AC output frequency | 50/60HZ | |||||
| THDv | <3% | |||||
| Switch time | <0.5S | |||||
| Efficiency | ||||||
| MAX. efficiency | 97.60% | 97.80% | 98.00% | 98.20% | 98.20% | 98.20% |
| European efficiency | 97.00% | 97.20% | 97.30% | 97.40% | 97.40% | 97.50% |
| Protection devices | ||||||
| DC switch | Yes | |||||
| DC reverse polarity protection | Yes | |||||
| AC/DC surge protection | Type II | |||||
| Battery reverse protection | Yes | |||||
| AC short-circuit protection | Yes | |||||
| Ground fault monitoring | Yes | |||||
| Grid monitoring | Yes | |||||
| Anti-islanding protection | Yes | |||||
| Residual-current monitoring unit | Yes | |||||
| Insulation resistance monitoring | Yes | |||||
| General data | ||||||
| Dimensions (W / H / D) | 505/453/198mm | |||||
| Weight | 28kg | |||||
| Operating temperature range | –25 °C ... +60 °C | |||||
| Nighttime power consumption | < 13W | |||||
| Topology | Transformerless | |||||
| Cooling | Natural | |||||
| Protection degree | IP65 | |||||
| Relative humidity | 0~100% | |||||
| Altitude | 3000m | |||||
| DC connection | H4 / MC4 (Optional) | |||||
| AC connection | Connector | |||||
| Display | LCD+LED | |||||
| Interfaces: RS232/RS485/CAN/USB | Yes | |||||
| Monitor : RF/WIFI/GPRS | Optional | |||||
| Warranty: 5 years / 10 years | Yes /Optional | |||||
| IEC 61000, IEC 62109, IEC 62040, VDE-AR-N 4105, VDE 0126, UTE C 15-712, En50549, CEI 0-21IEC62116, IEC61727, AS/NZS 4777, G98, IEC 62477, C10/11 , UNE217001 , UNE206007 , PO12.2, TOR Erzeuger | ||||||
