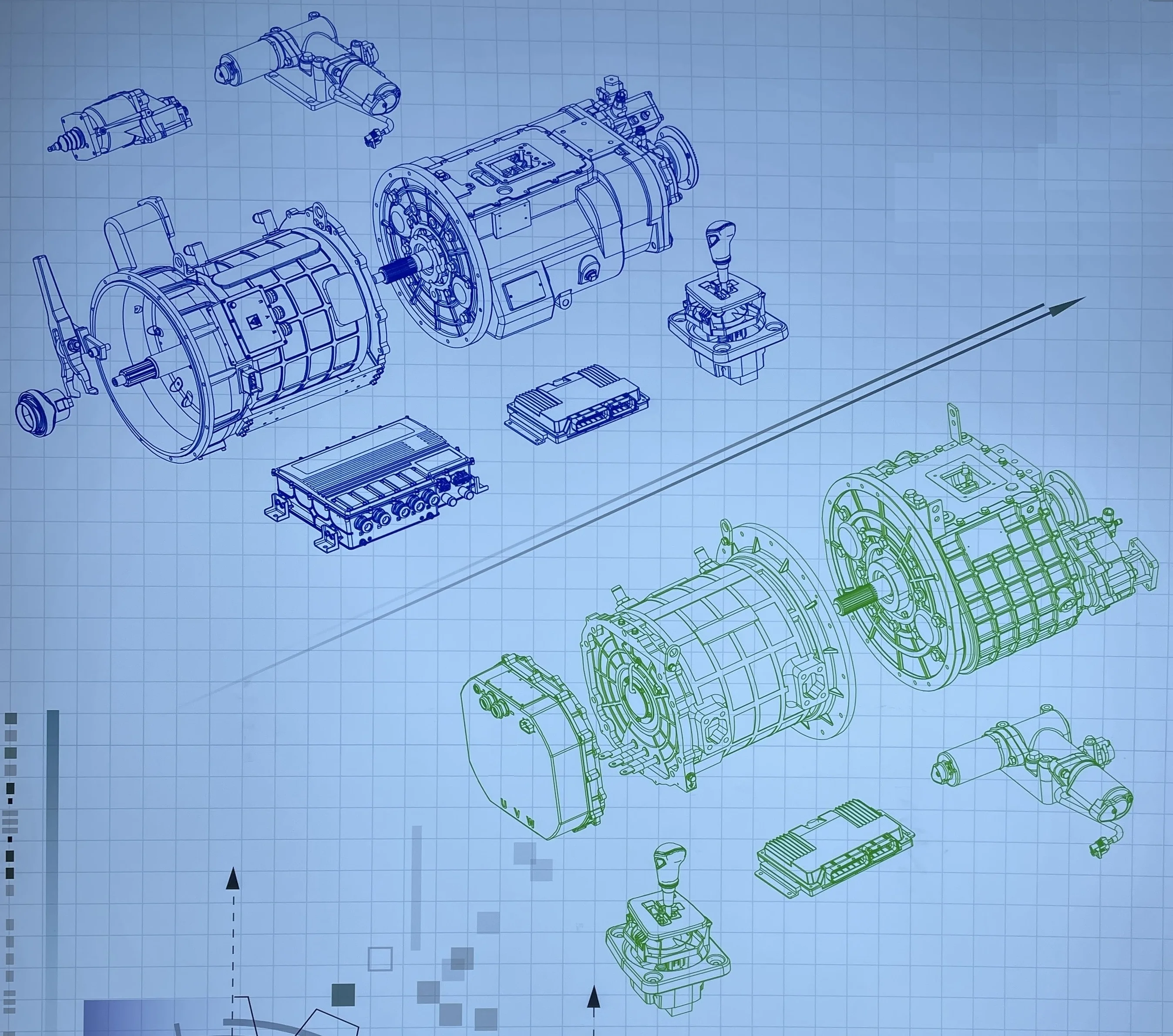

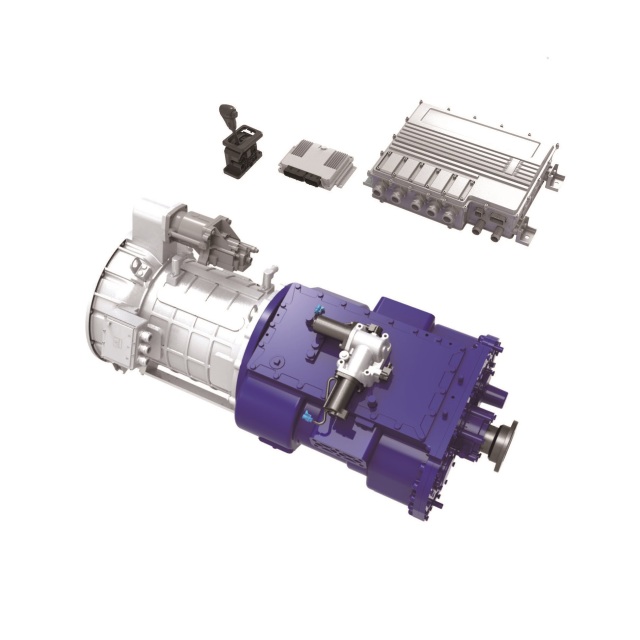

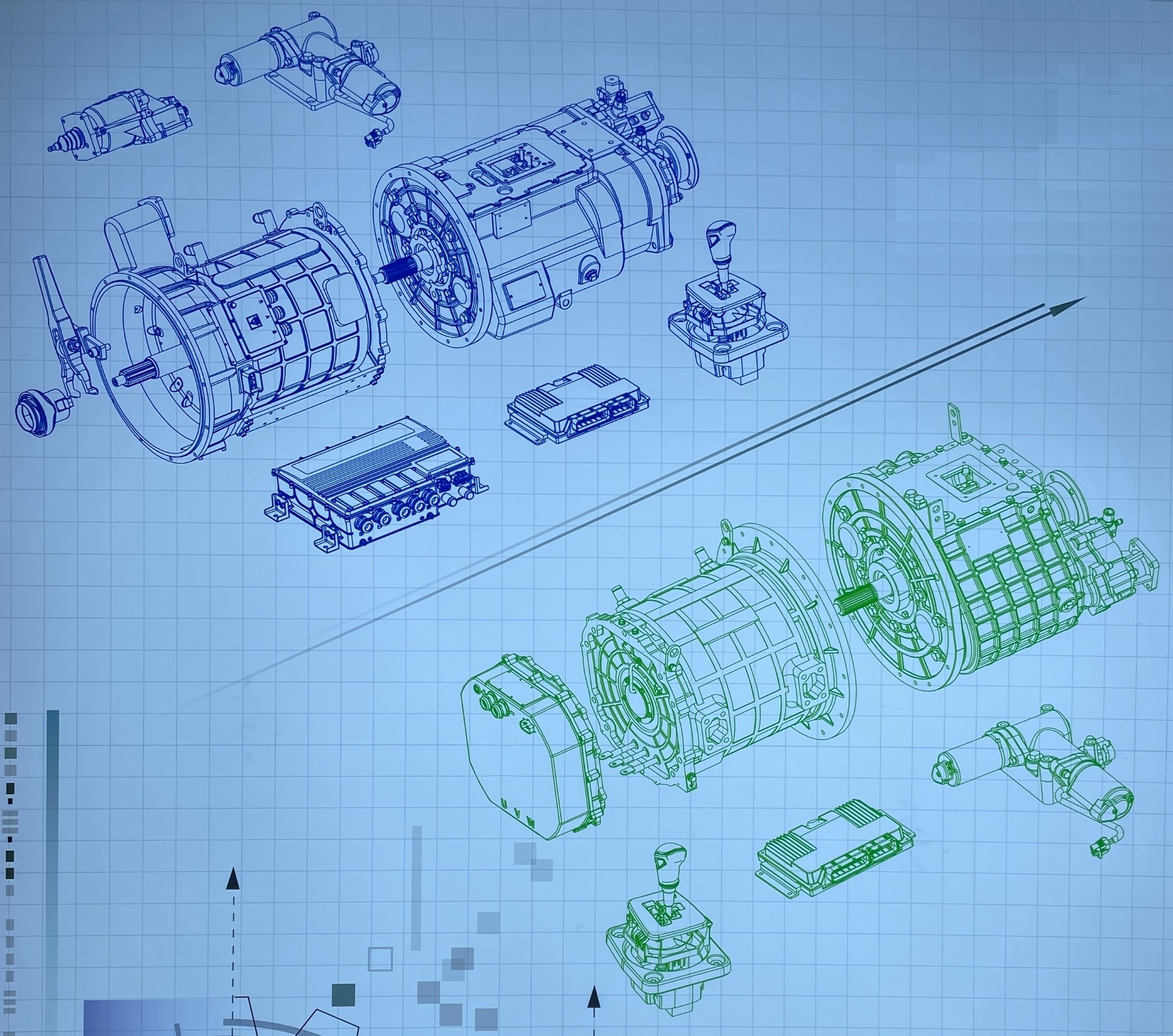

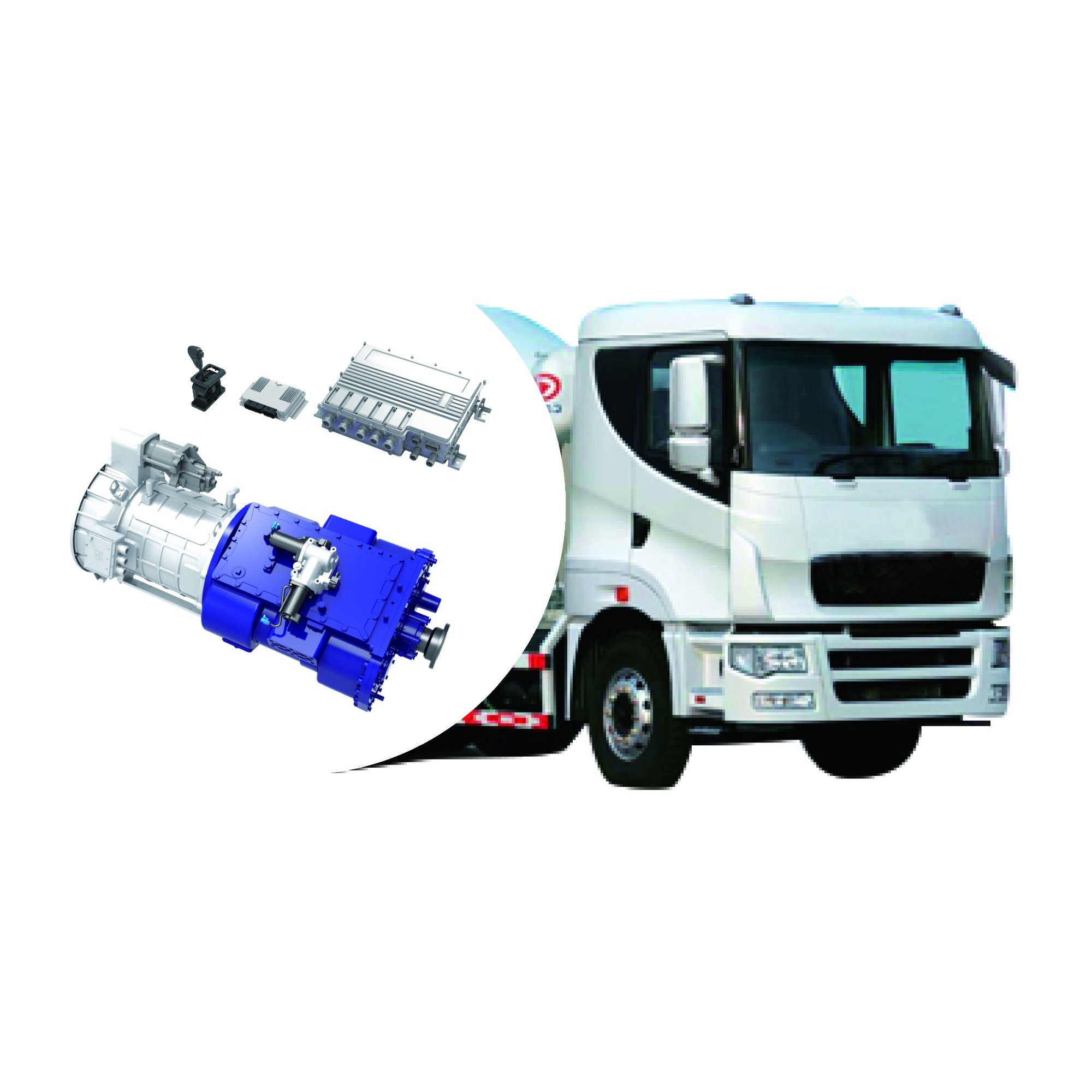

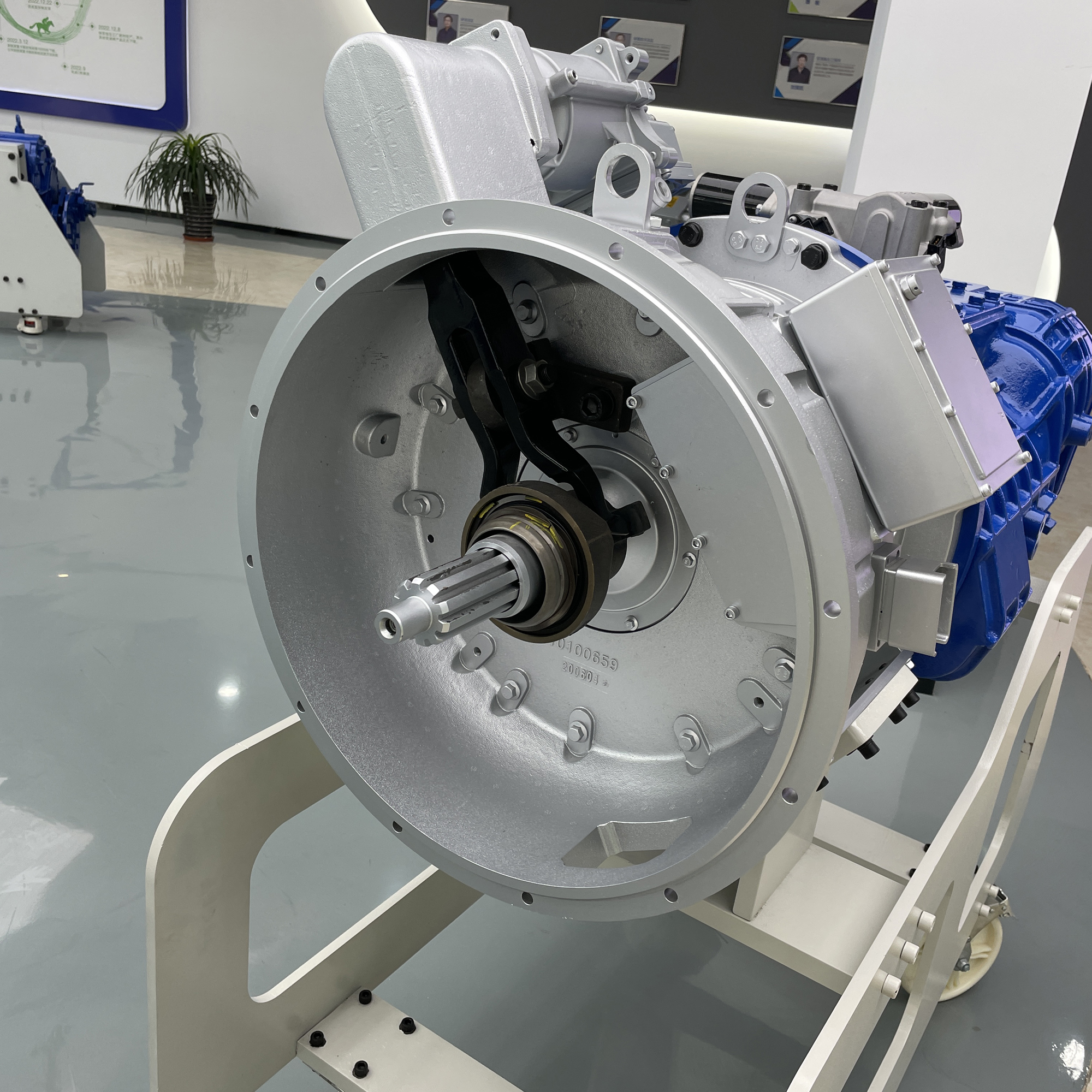

Full Hybrid PHEV 170-250kW Electric Heavy Truck 4x2/6x4/8x4 or Special Truck use Pure Electric Drive System for 49-70 tons Truck
Full Hybrid Motor drive
Integrated seven-speed transmission
Suitable Vehicle: 49-70 Tons Heavy Electric Truck
Specification:
| Electric Drive System | 49-70 Tons Hybrid Electric Drive System | |
| Suitable Vehicle | Heavy Truck 4x2/ 6x4/ 8x4 | |
| Motor Specification | Rated/Peak Power (kW) | 170/250 |
| Rated/Peak Torque (N.m) | 1100/2500 | |
| Rated/Max Rotation (rpm) | 1475/2800 | |
| Transmission parameters | Max Input Torque(N.m) | 2500 |
| Speed Ratio | 10.573/6.588/4.148/2.787/1.949/1.375/1/R9.79 | |
| Power Takeoff | EZF680 (Optional) | |
| Power Assembly System Specification | Clutch Housing | SAE 1# Housing |
| Clutch Disengagement Method | Electropneumatic Disengagement (ACA) | |
| Total Weight: (kg) | <=730 | |
| Size: L×W×H(mm) | 1458x629x695 | |
| Max Output Torque (N.m) | 26432 | |
| Vehicle power performance | Max Cruise Speed (km/h) | >=100 |
| Climbing Slope (%) | >=25% | |
