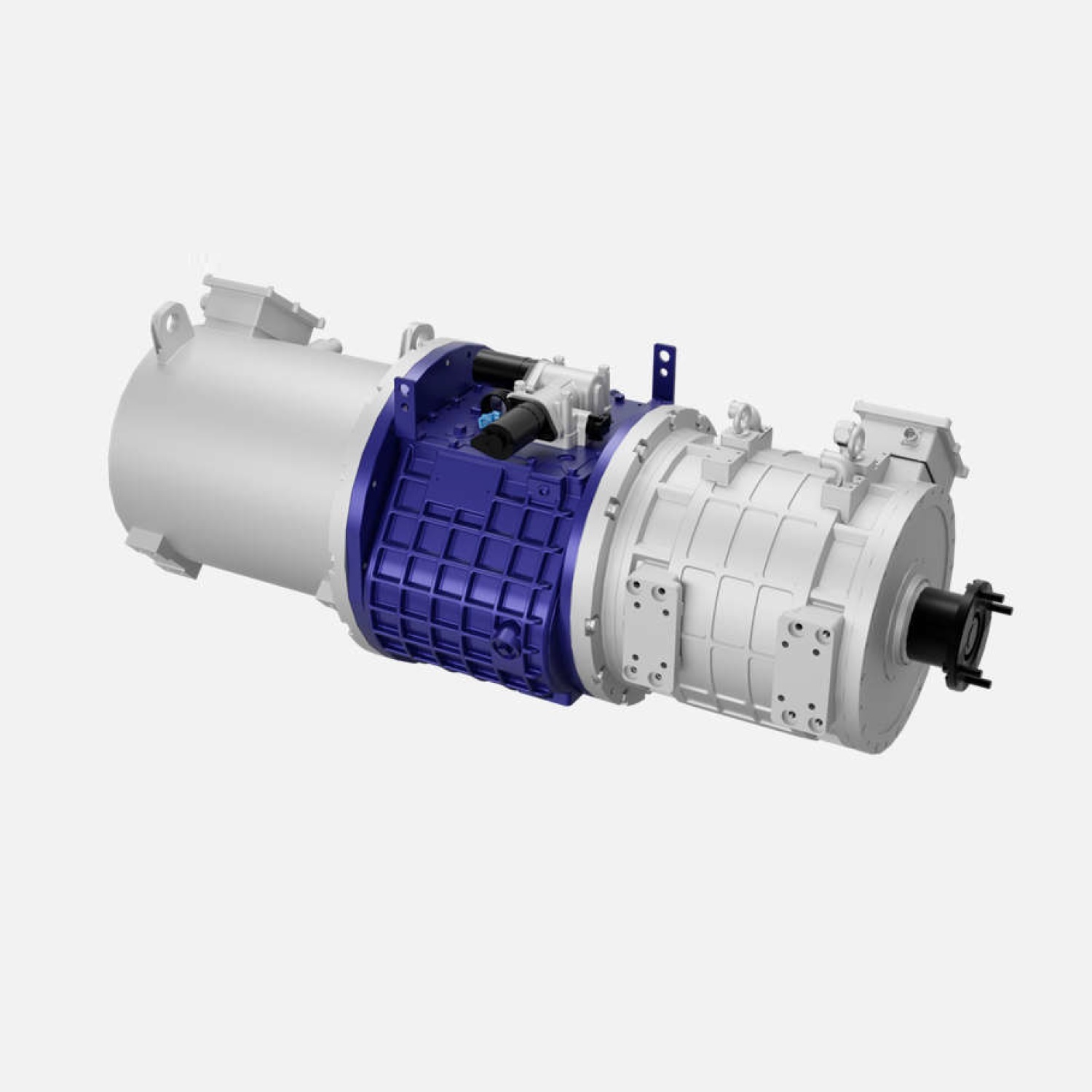

Front and Rear Dual Motor drive
Integrated four-speed transmission

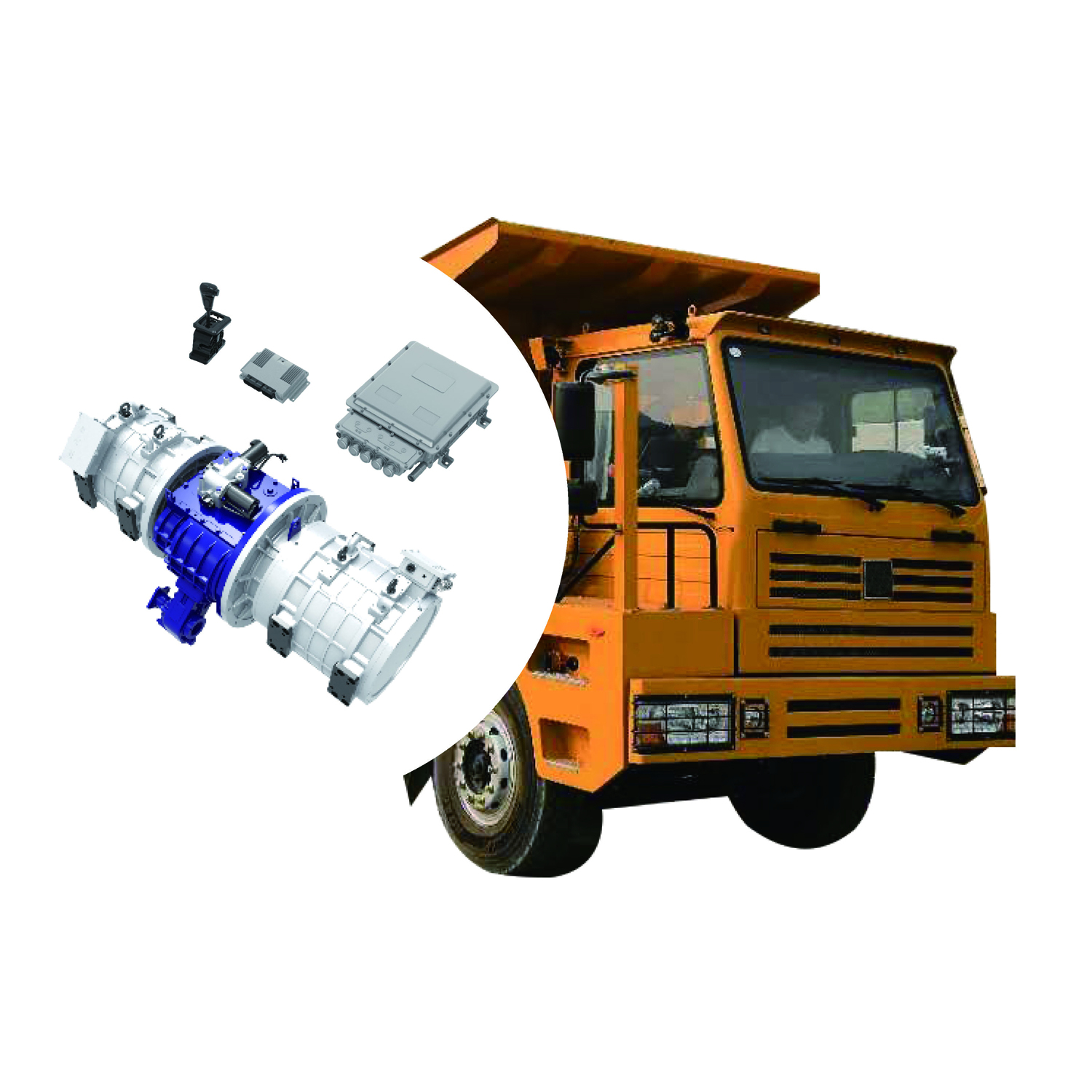

Suitable Vehicle: 90-120 Tons Electric Mining Truck
Specification:
| Electric Drive System | 90-120 Tons Pure Electric Drive System (EMT) | ||
| Suitable Vehicle | Mining Truck | ||
| Motor Specification | Rated/Peak Power (kW) | Main Motor: 300/450 |
Auxiliary Motor: 180/250 |
| Rated/Peak Torque (N.m) | Main Motor: 1400/2500 |
Auxiliary Motor: 1400/2800 |
|
| Max Rotation (rpm) |
Main Motor: 3000 |
Auxiliary Motor: 2600 |
|
| Transmission parameters | Max Input Torque(N.m) | 3000 | |
| Speed Ratio | 5.53/3.05/1.66/1 | ||
| Power Takeoff | Optional | ||
| Power Assembly System Specification | Total Weight: (kg) | <=921 | |
| Size: L×W×H(mm) |
1577×753×607 (Include Power Takeoff) | ||
| Max Output Torque (N.m) | 18284 | ||
| Vehicle power performance | Max Cruise Speed (km/h) | >=60 | |
| 0~50km/h Acceleration time(s) | <=30 | ||
| Climbing Slope (%) | >=30 | ||
