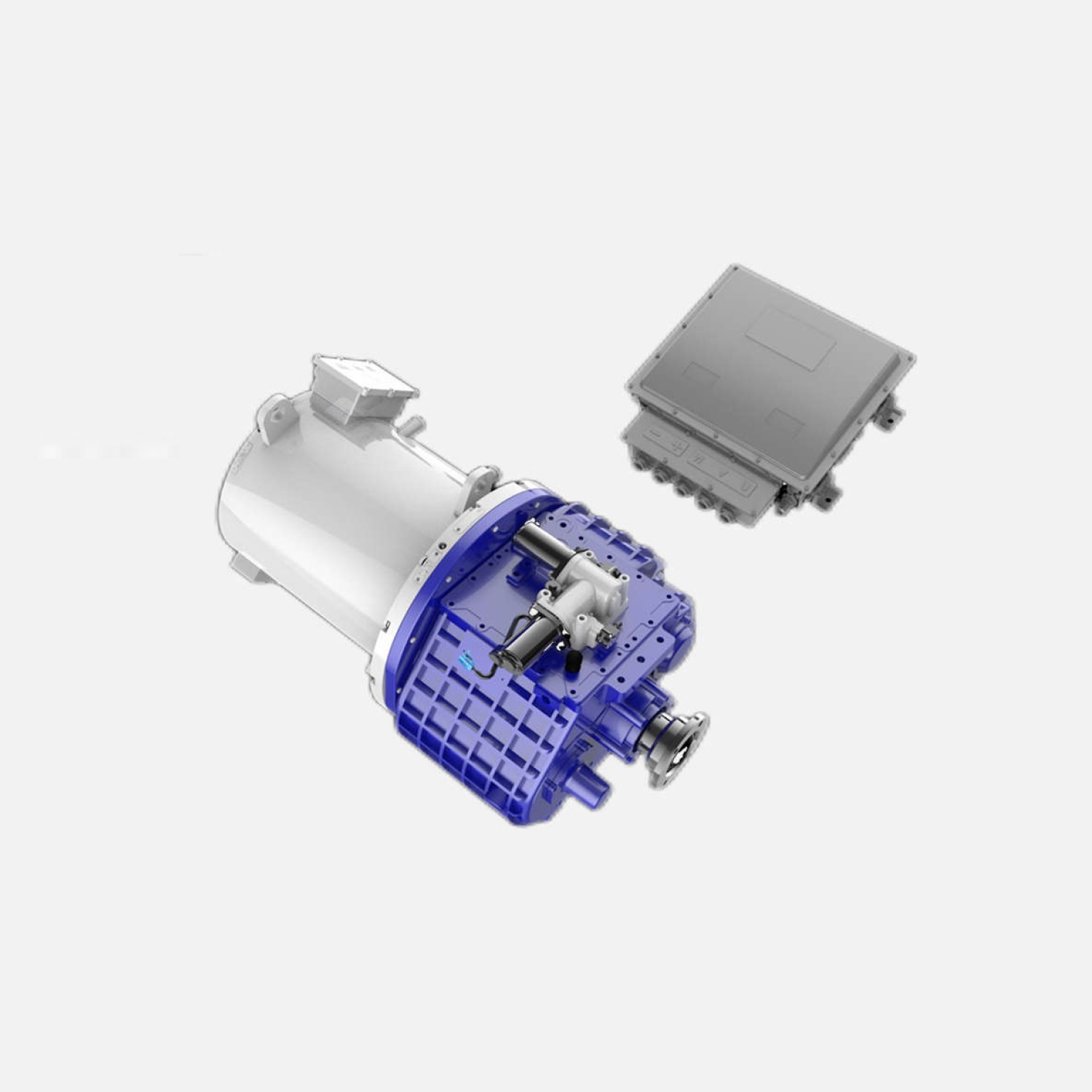

Integrated four-speed transmission

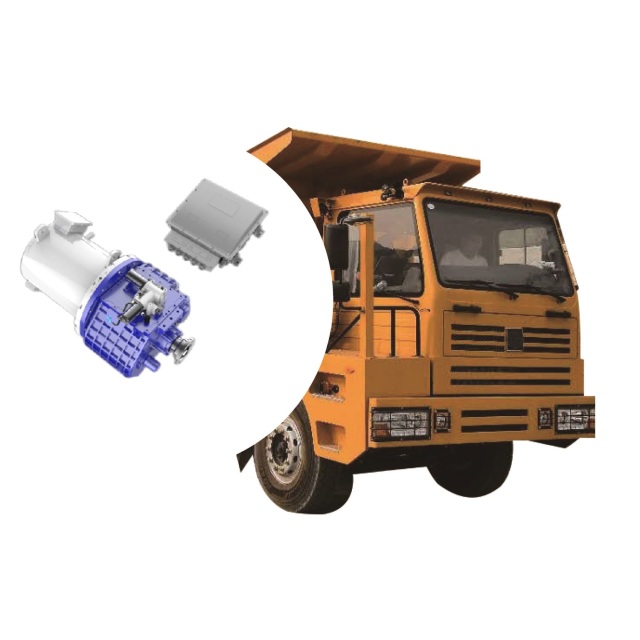

Suitable Vehicle: 90 Tons Electric Mining Truck
Specification:
| Electric Drive System | 90 Tons Pure Electric Drive System (EMT) | ||
| Suitable Vehicle | Mining Truck | ||
| Motor Specification | Rated/Peak Power (kW) | 360 | 500 |
| Rated/Peak Torque (N.m) | 1800 | 2500 | |
| Max Rotation(rpm) | 1910 | 3000 | |
| Transmission parameters | Max Input Torque(N.m) | 2500 | |
| Speed Ratio | 5.53/3.05/1.66/1 | ||
| Power Takeoff | Optional | ||
| Power Assembly System Specification | Total Weight: (kg) | <=600 | |
| Size: L×W×H(mm) | 1188×661×607 (Include Power Takeoff) | ||
| Max Output Torque (N.m) | 13825/19825 | ||
| Vehicle power performance | Max Speed (km/h) | >=100 | |
| Climbing Slope (%) | >=30 | ||
