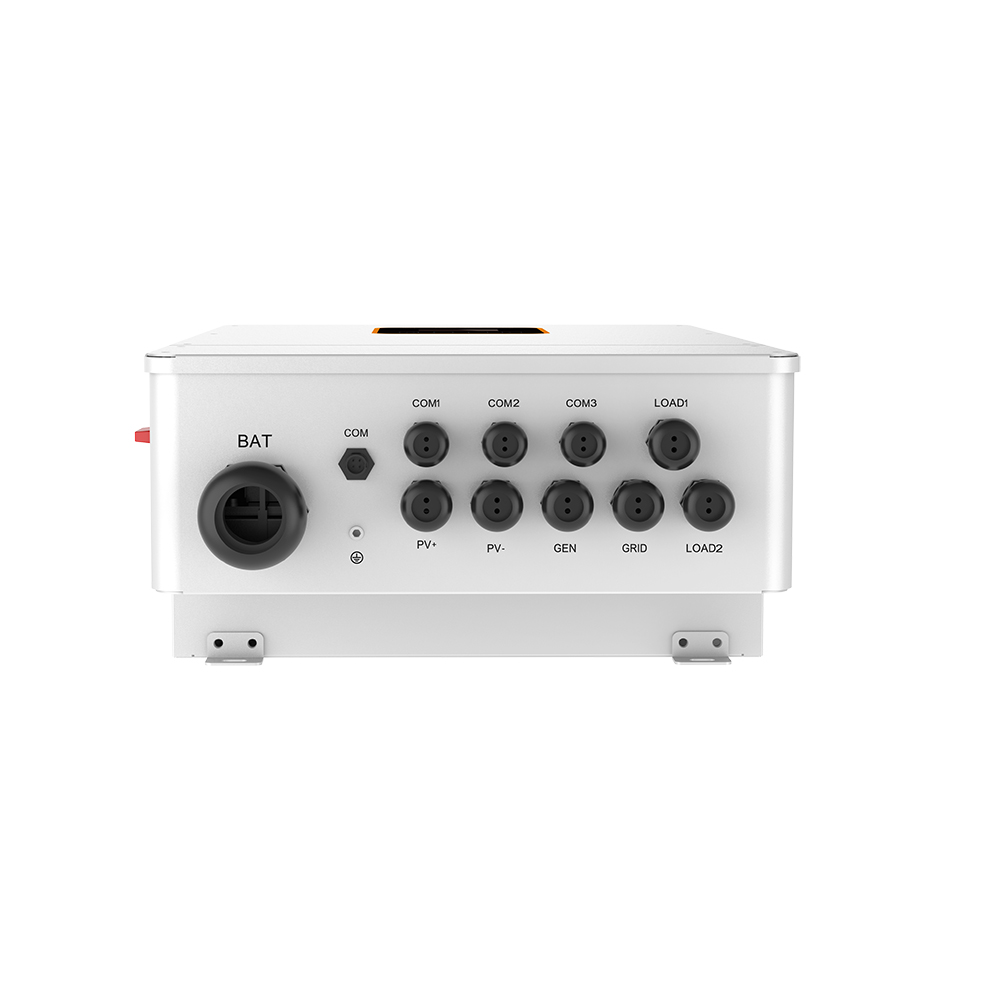

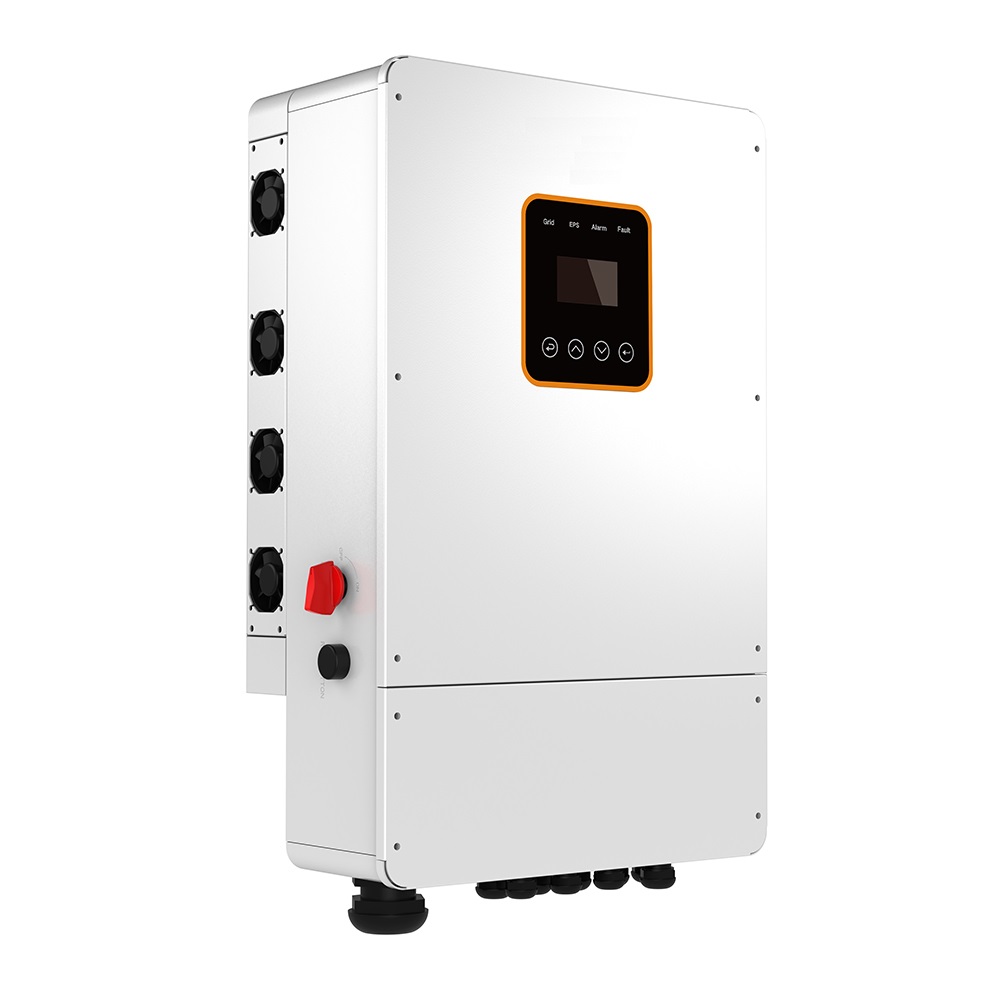

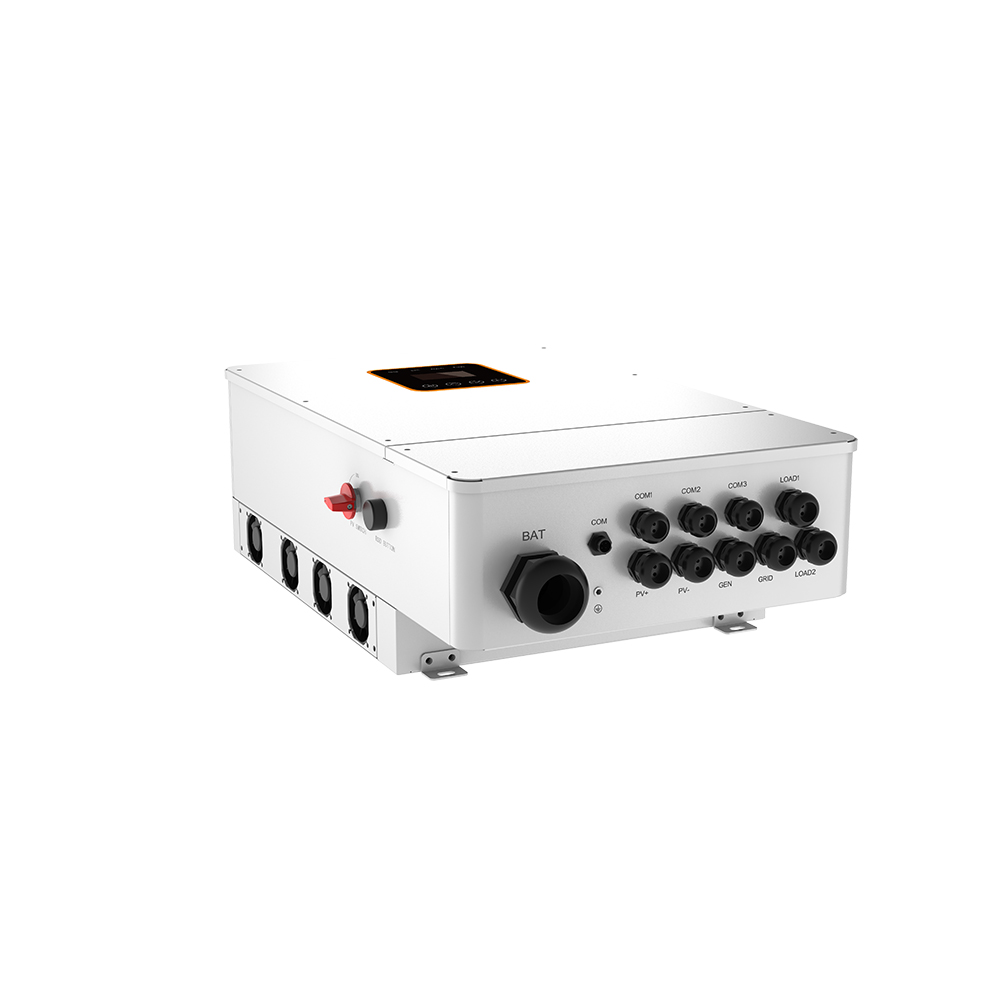

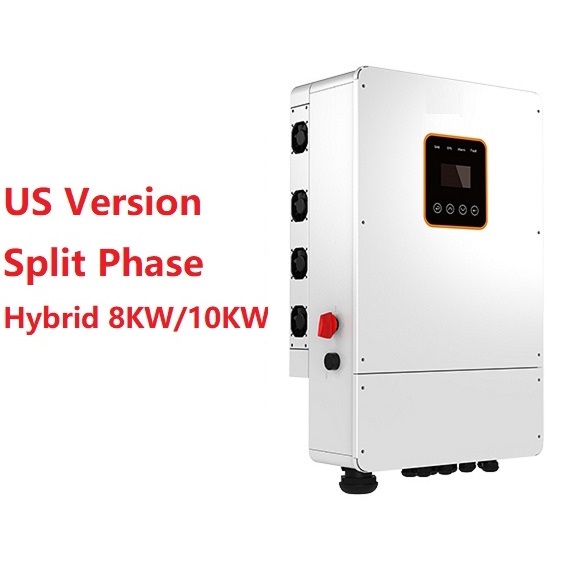

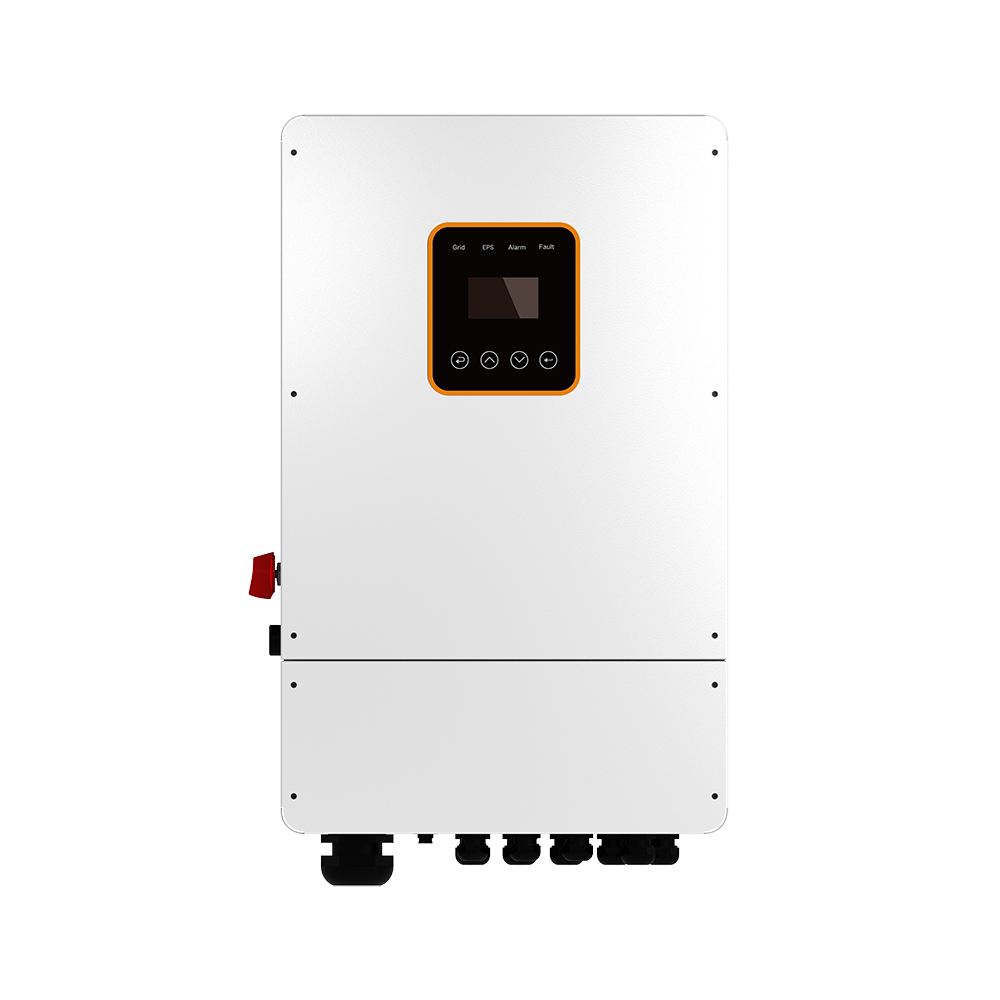

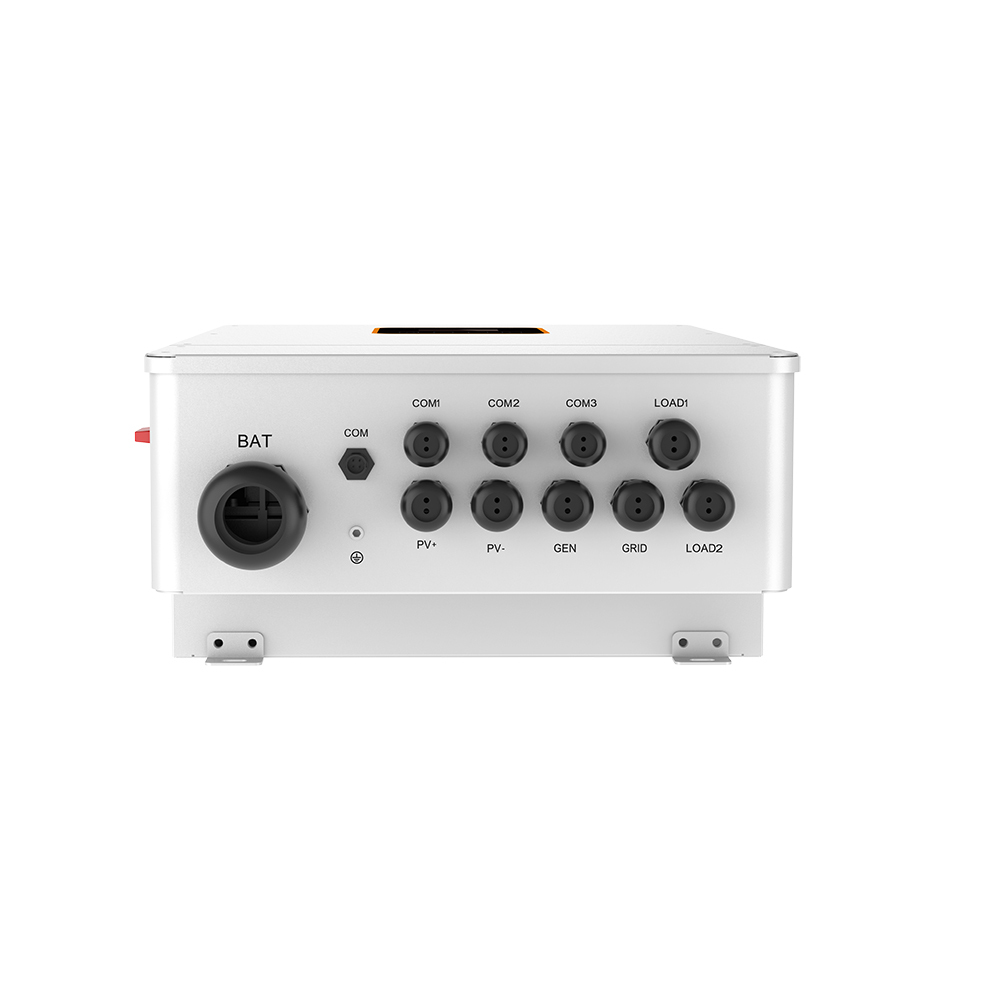

American Version 5-10KW MPPT Split-phase Inverter (48V Battery)
As our start product, LNA series low-voltage North American Hybrid inverter can be widely used in various home storage application environments. Combined with smart display, it makes operation and maintenance easier.
Product Features: Safe & ReliablePassed UL 1741:2021, IEEE 1547.1, UL1699B, South Africa NRS097-2-1:2017 test certification; Friendly & Flexible
Support multi-machine parallel connection, the maximum parallel connection can reach 8;
Support multi-machine parallel mode sharing a battery pack;
Single-machine load capacity 100A; Economical & Practica
Support parallel SOC equalization control and parallel current sharing control;
Using split-phase topology and eliminating the transformers, to make the system efficiency higher;
Support the diesel generator and the grid access at the same time;
Technical Specification:
| Technical specification |
R5KLNA |
R6KLNA |
R8KLNA |
R10KLNA |
| Input (PV) |
|
| Max. power(kW) |
7.5 |
9 |
12 |
13 |
| Max. DC voltage(V) |
550 |
| MPPT voltage range(V) |
125~500 |
| Max.input current of single MPPT(A) |
12 |
| MPPT tracker/strings |
4/1 |
| AC output |
|
| Rated output power(kVA) |
5 |
6 |
8 |
10 |
| Max. output current(A) |
24 |
28.8 |
38.3 |
47.8 |
| Grid voltage/range(V) |
120/240(split phase), 208(2/3 phase),230 (single phase) |
| Frequency (Hz) |
50 /60 |
| PF |
0.8 lagging-0.8 leading |
| THDi |
<3% |
| AC output topology |
Split phase, 2/3 phase, single phase |
| Battery Data |
|
| Battery voltage range(V) |
40-58 |
| Max. charging voltage(V) |
58 |
| Max. charge/discharge current(A) |
120/120 |
135/135 |
190/190 |
210/210 |
| Battery type |
Lithium /Lead-acid |
| Communication interface |
CAN/RS485 |
| EPS output |
|
| Rated power (kVA) |
5 |
6 |
8 |
10 |
| Rated output voltage(V) |
120/240 (split phase), 208 (2/3 phase),230 (single phase) |
| Rated output current(A) |
24 |
28.8 |
38.3 |
47.8 |
| Rated frequency (Hz) |
50 /60 |
| Automatic switching time (ms) |
<20 |
| THDu |
<2% |
| Overload capacity |
125%, 60S/150%, 1S |
| General Data |
|
| Max. efficiency |
98.20% |
| North American efficiency |
97.20% |
| MPPT efficiency |
99.90% |
| Ingress protection |
IP65/NEMA 3R |
| Noise emission (dB) |
<25 |
<29 |
<29 |
<29 |
| Operation temperature |
- 25℃～ 60℃ |
| Cooling |
Natural |
| Relative humidity |
0 ~95%（non-condensing） |
| Altitude |
2,000m(>2,000 Derating) |
| Dimensions W*D*H (mm) |
430*220*710 |
| Weight (kg) |
41 |
| Isolation transformer |
No |
| Self-consumption(W) |
<3 |
| Display and communication |
|
| Display |
LCD, Touch Screen |
| Interface:RS485/Wifi/4G/ CAN/DRM |
Yes |
| Safety standard |
UL1741SA all options, UL1699B, CSA 22.2 |
| EMC |
FCC Part 15, Class B |
| On-grid |
IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III,NRS |
