Off Grid Single Phase 5KW MPPT Solar Inverter for battery voltage 48V with LCD Display and Glass Panel
Product Features:
Pure sine wave solar inverter
Unique glass top cover design with LCD display and touchable buttons
Built-in 220A MPPT (Max PV 5500W) solar charger
High PV input range from 120V-450Vdc
Smart battery charger design for optimized battery performance
Configurable AC/Battery input priority via LCD setting
Auto restart while PV is recovering
Over-load , over temperature and output short circuit protection
Cold restart function
Built-in lithium battery automatic activation
Communication with RS485/CAN/USB/Dry Contact
WiFi monitoring function (optional )
Anti-dust kit for harsh environment(optional)
Restore default Settings with one click
Technical Specification:
| Model | HFP4850S80-H |
| INVERTER OUTPUT | |
| Rated Output Power | 5,000W |
| Max.Peak Power | 10000VA |
| Rated Output Voltage | 230Vac±5% (Single-Phase/Three-Phase(Parallel)) |
| Load Motor Capacity | 4HP |
| Rated Frequency | 50/60Hz |
| Waveform | Pure sine wave |
| Switch Time | 10ms (typical) |
| BATTERY | |
| Battery Type | Lead-Acid / Li-ion / User-Define |
| Rated Battery Voltage | 48V |
| Battery Volatge Range | 40-60Vdc |
| Max. Solar Charging Current | 80A |
| Max. Grid/Generator Charging Current | 60A |
| Max. Hybrid Charging Current | 80A |
| SOLAR INPUT | |
| No. Of MPPT | 1 |
| Max.PV Array Power | 5,500W |
| Max. Input Current | 22A |
| Max. Open Circuit Voltage | 500Vdc |
| MPPT Voltage Range | 120-450Vdc |
| GRID/GENERATOR INPUT | |
| Input Voltage Range | UPS mode:170~280Vac; APL mode:90~280Vac |
| Input Frequency Range | 50/60Hz |
| Bypass Overload Current | 40A |
| EFFICIENCY | |
| MPPT Tracking Efficiency | 99.90% |
| Max. Efficiency | 97.50% |
| GENERAL DATA | |
| Dimension | 426mm*322mm*124mm |
| Weight | 10.5 kg |
| Protection Degree | IP20 Only Indoor |
| Humidity Range | 0~100% |
| External Module (Optional) | Wi-Fi/GPRS |
| Parallel Capacity | 1~6 Units |
| Cooling Method | Fan Cooling |
| Warranty | 2 years |
| Communication | RS485/CAN/USB/Dry Contact |
| Temperature | -10℃~55℃ |
| Certificate | CE(IEC62109-1)/CETL(UL1741C22.2NO.107.1)/FCC/SAA |
| PROTECTION | |
| Battery Discharge Average Current Overcurrent Software Protection, Battery Overcurrent Hardware Protection, Charging Overvoltage Protection, Internal Battery Boost Circuit Overvoltage Hardware Protection, Internal Battery Boost Circuit Overvoltage Software Protection, Solar Input Voltage Overvoltage Protection, Solar Charging Overcurrent Software Protection, Solar Charging Overcurrent Hardware Protection, Bypass AC Output Overload Protection, Inverter AC Output Overload Protection, Inverter AC Output Overcurrent Hardware protection, inverter AC output short circuit protection, solar charging radiator over-temperature protection, inverter AC output with load or AC charging radiator over-temperature protection |
|

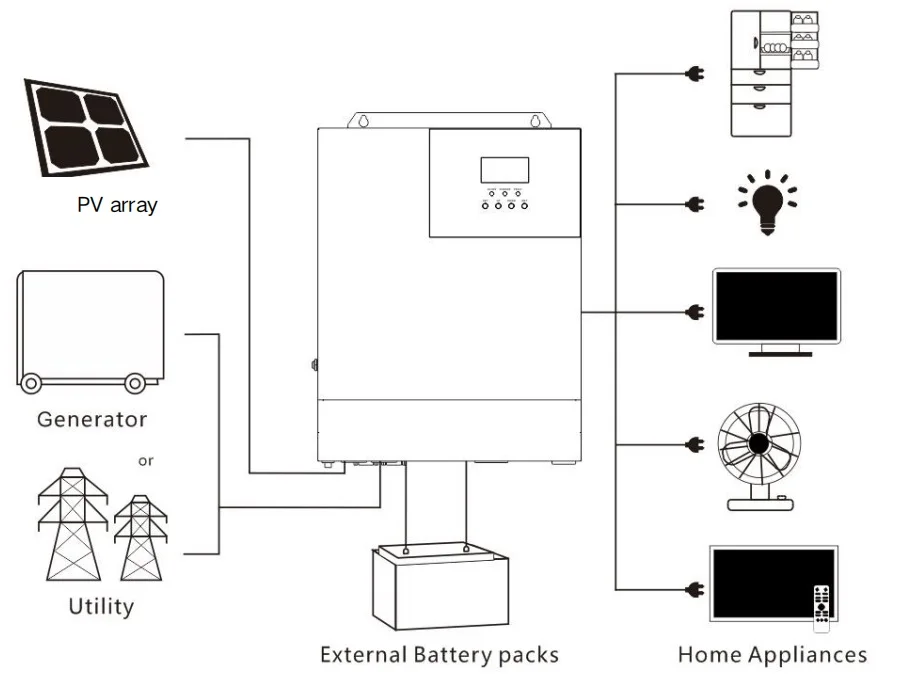

Connection Diagram:

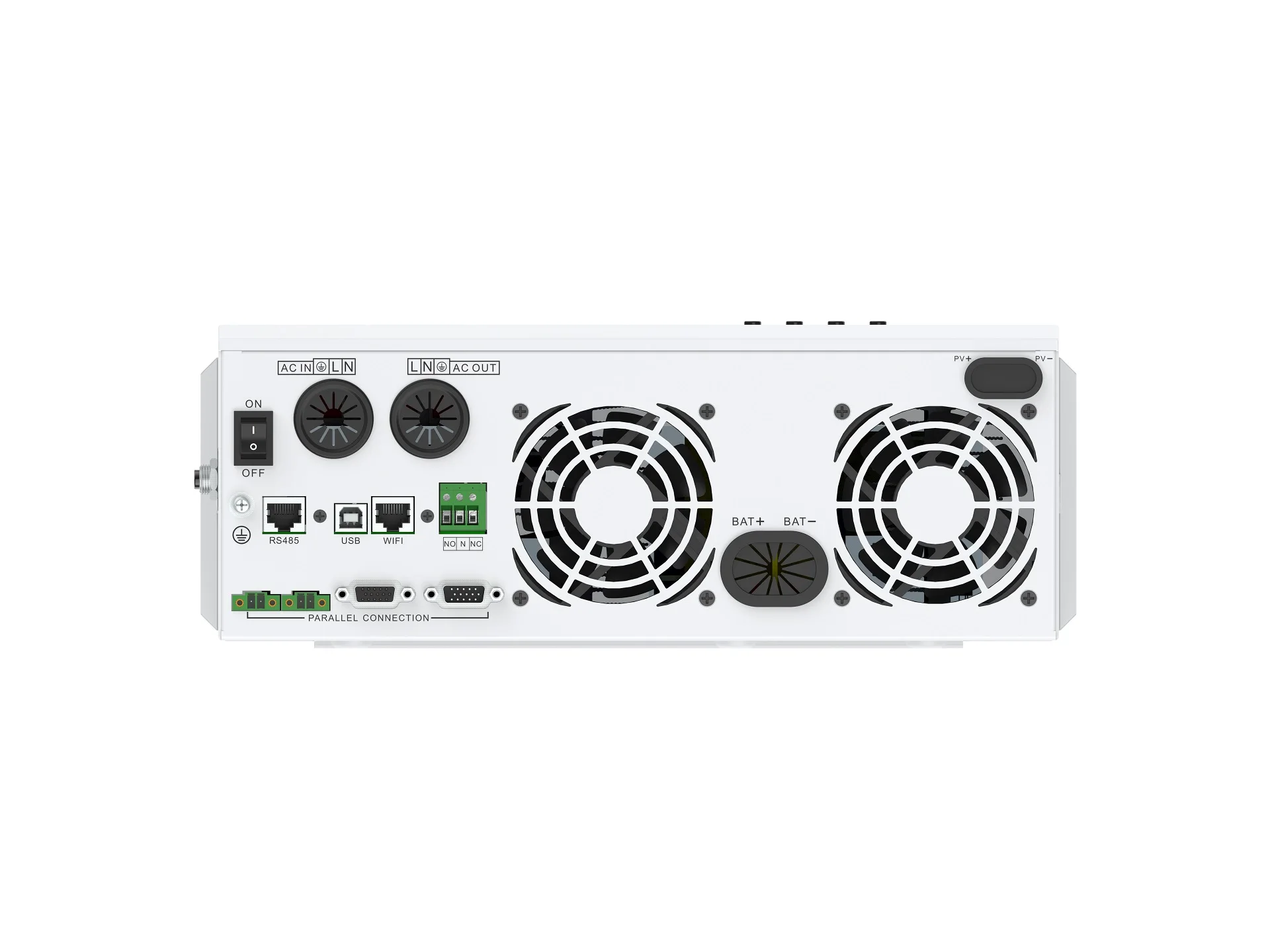

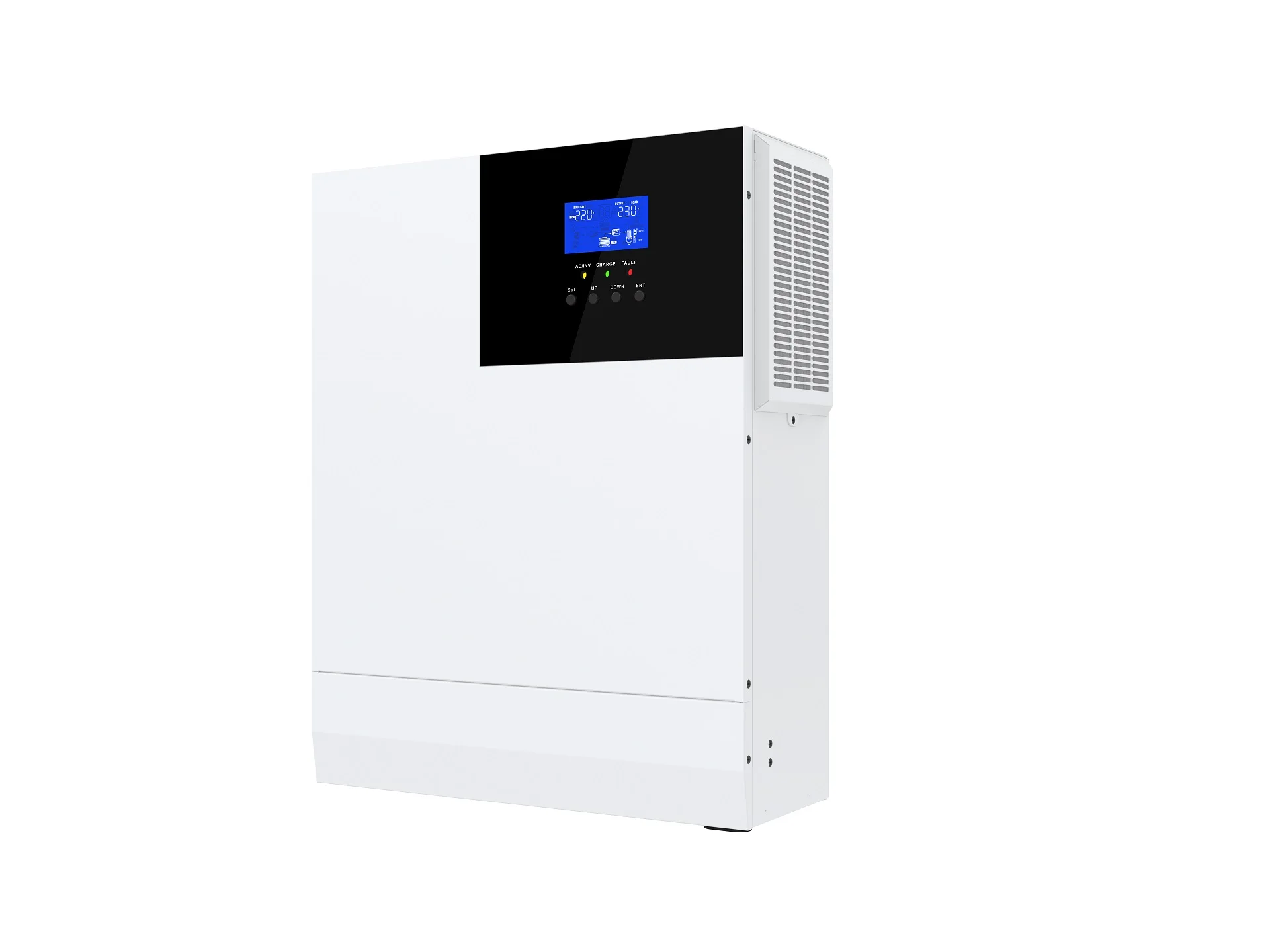

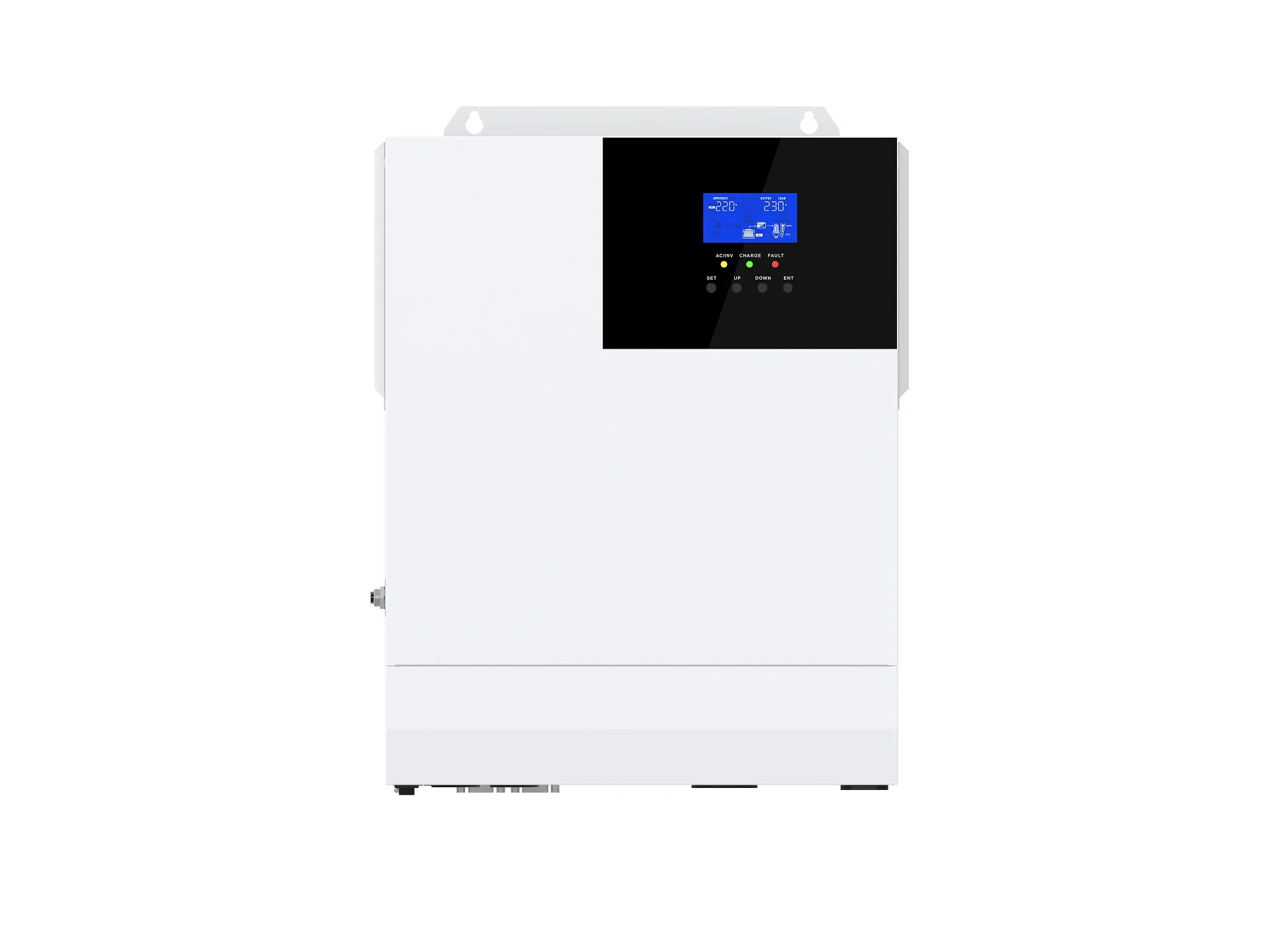

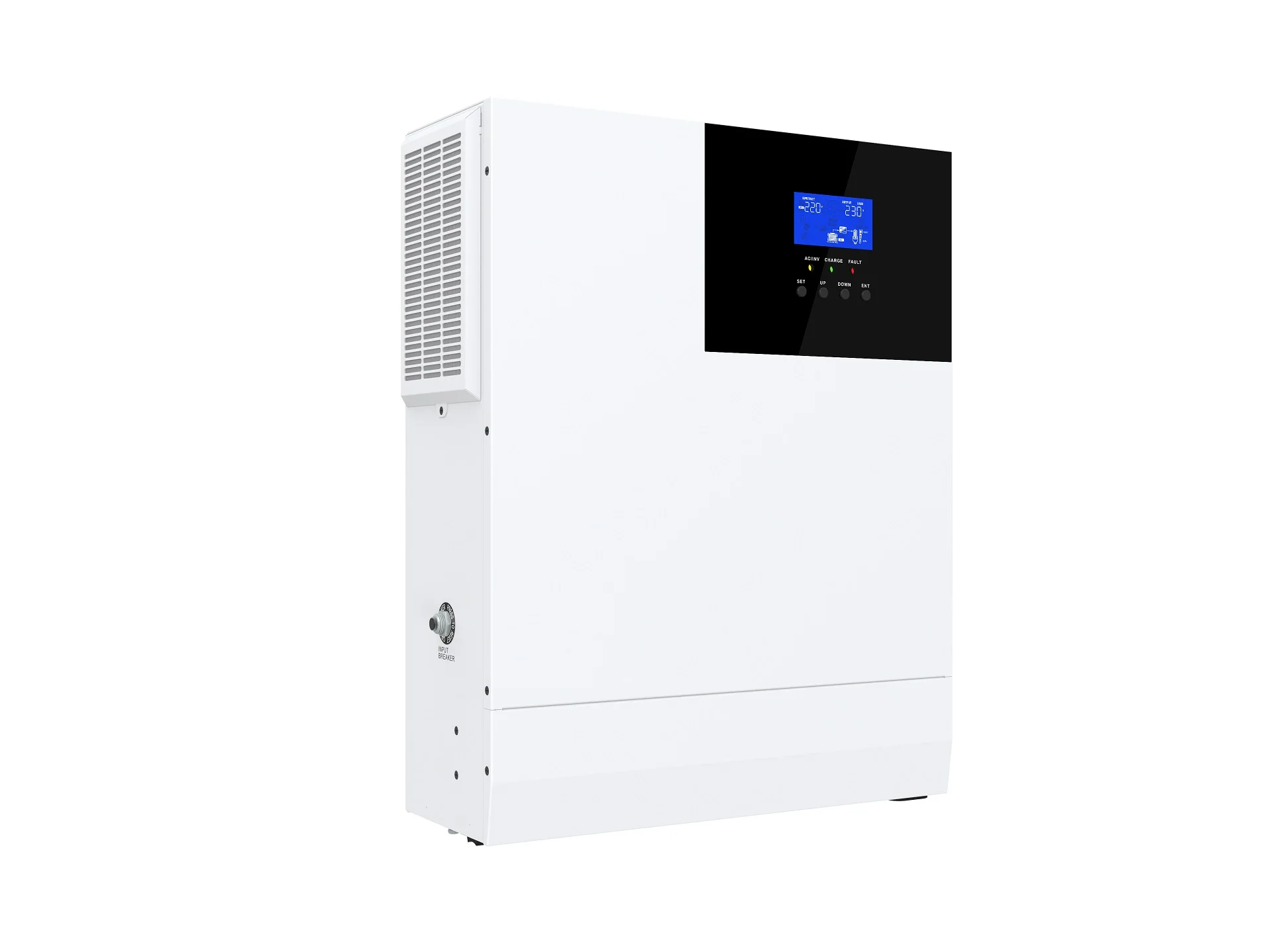

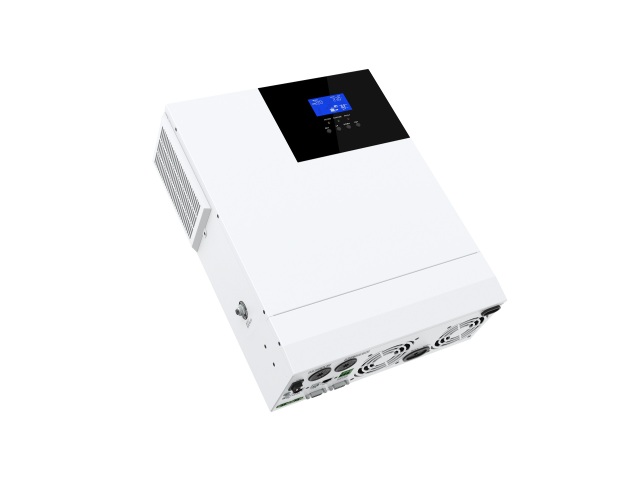

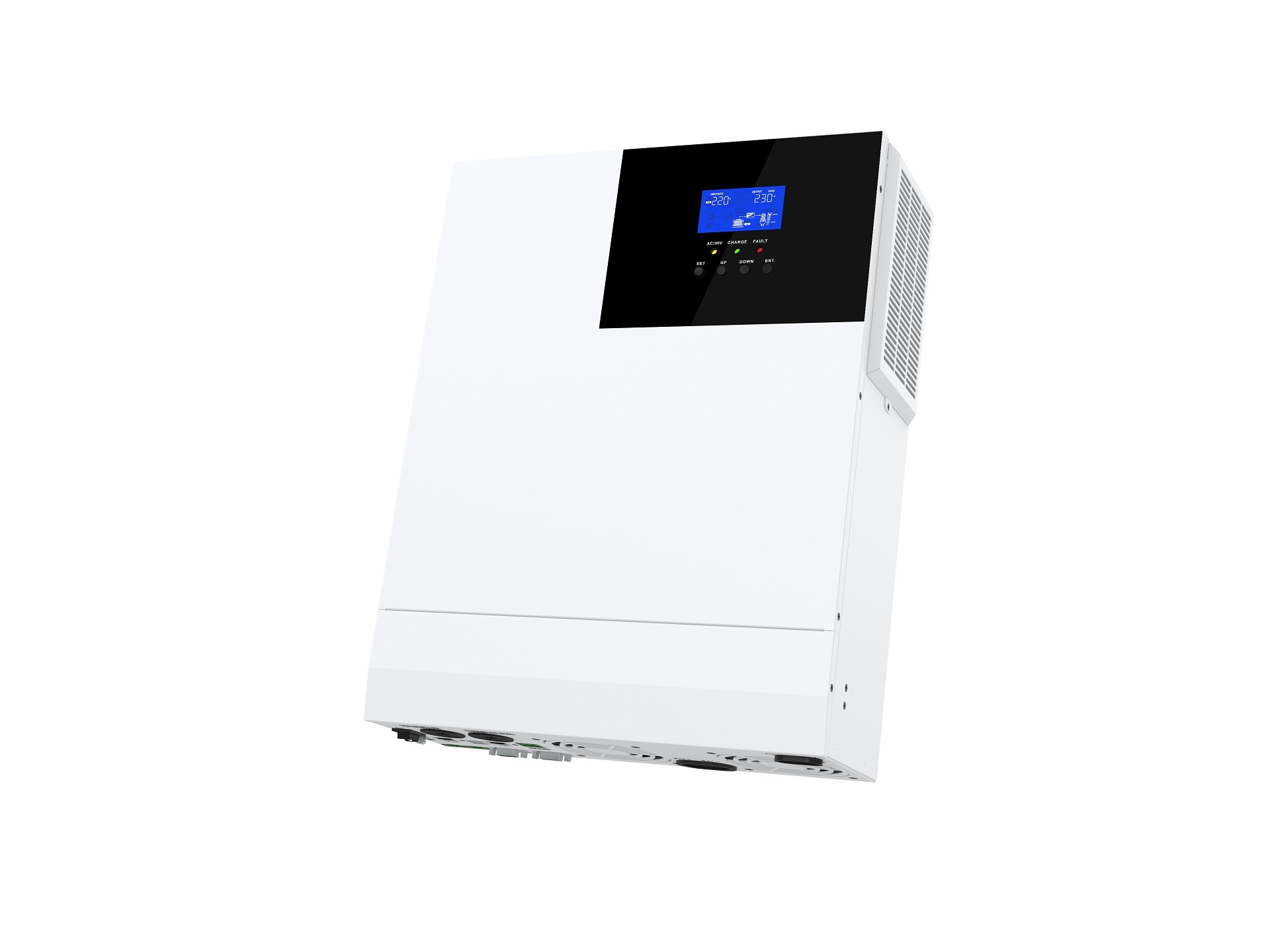

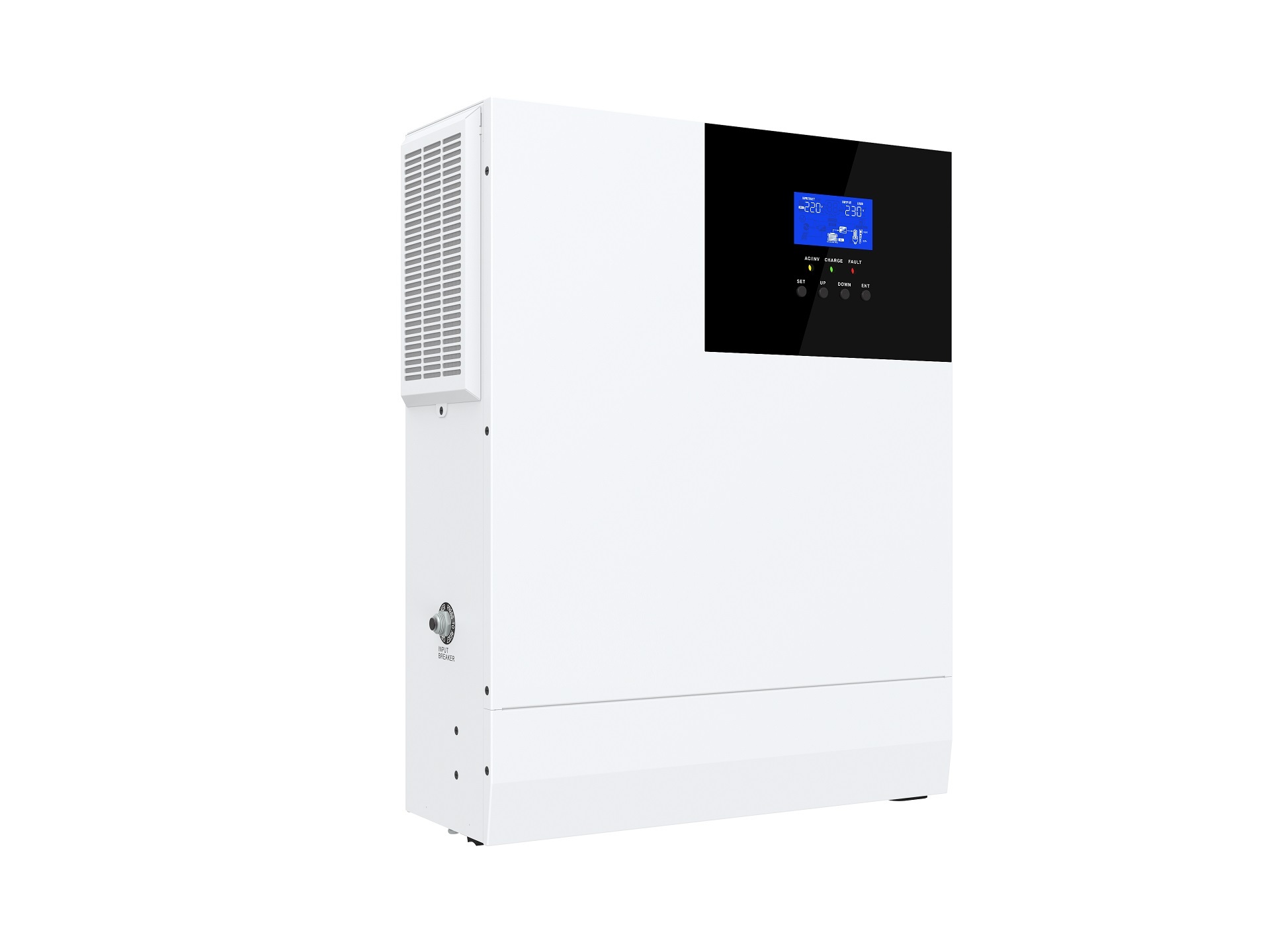

Products Photo:
